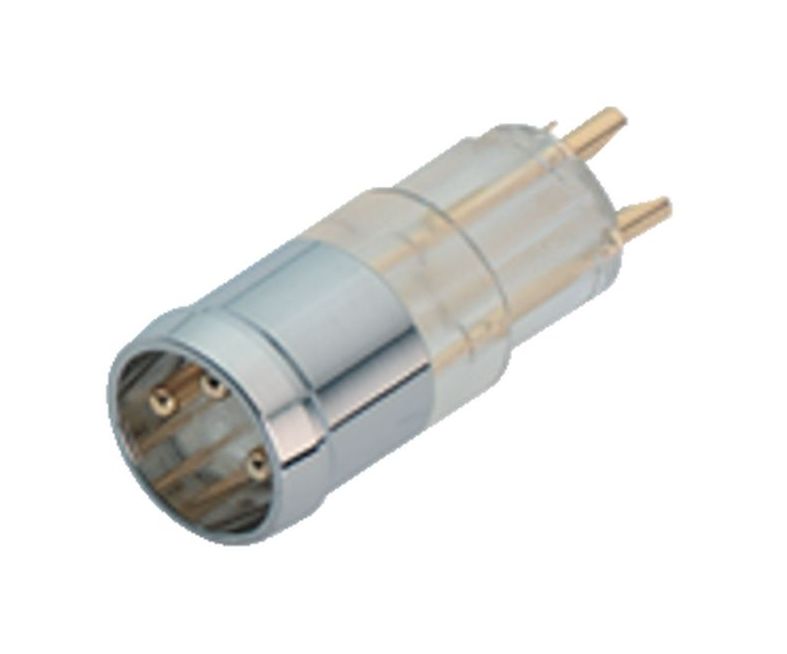

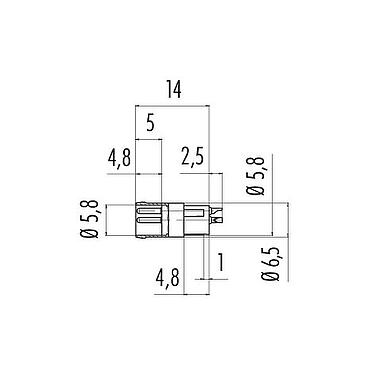

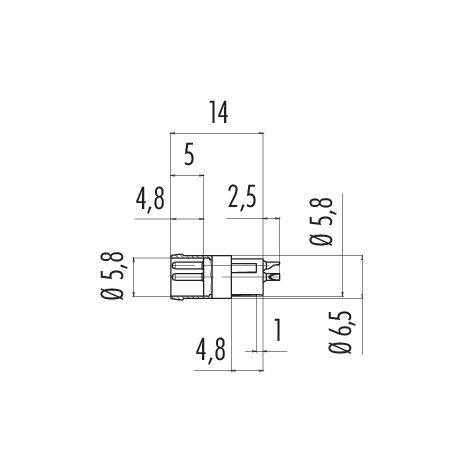

Part no.: 09 3411 40 03
Snap-In Male receptacle, Contacts: 3, unshielded, solder, IP65
M8, series 718, Automation Technology - Sensors and Actuators
This Male receptacle with snap-in locking system and a pin count of 3 is according to its protection class IP65 Dustproof and complete protection against contact. Protected against dust in harmful quantity. Protection against water jets (nozzle) from any angle.. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/70 °C is this unshielded M8 Male receptacle designed for both severe cold and severe heat. Due to the qualified rated voltage of 10 - 30 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
MorelessPart no. | 09 3411 40 03 |
Connector design | Male receptacle |
Type standard | DIN EN 61076-2-104 |
Version | Connector pin straight |
Connector locking system | snap-in |
Termination | solder |
Degree of protection | IP65 |
Cross-sectional area | 0.25 mm² / AWG 24 |
Temperature range from/to | -25 °C / 70 °C |
Mechanical operation | > 100 Mating cycles |
Weight (g) | 0.90 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 10 - 30 V |
Rated impulse voltage | 500 V |
Rated current | 4.0 A |
Pollution degree | 3 |
Overvoltage category | II |
Insulating material group | II |
EMC compliance | unshielded |
Material
MorelessHousing material | CuZn (Brass nickel plated) |
Contact body material | PA |
Contact material | CuZn (brass) |
Contact plating | Au (gold) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | d693f1f2-0579-4aa6-b934-e128b53ab8bf |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-09 |
ETIM 9.0 | EC003569 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
