  4. M8 Female panel mount connector, Contacts: 8, unshielded, single wires, IP67/IP69K, UL, M8x0.5
Part no.: 76 6018 0111 00008-0200

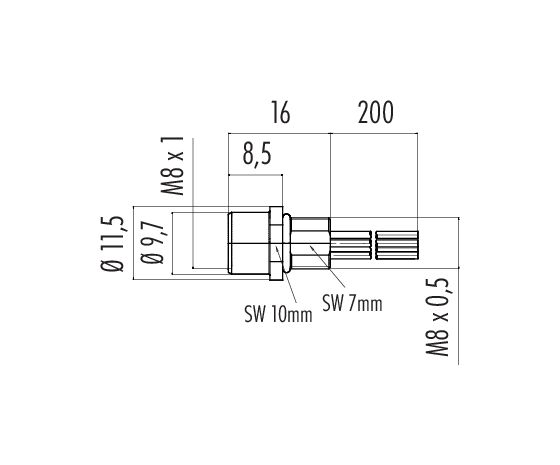

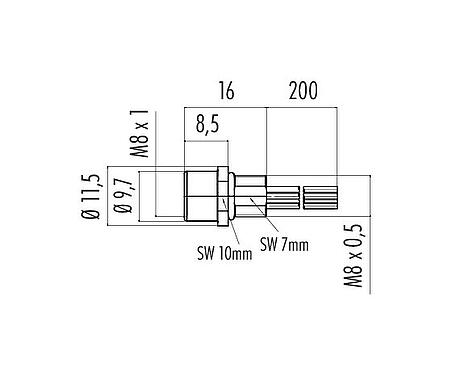

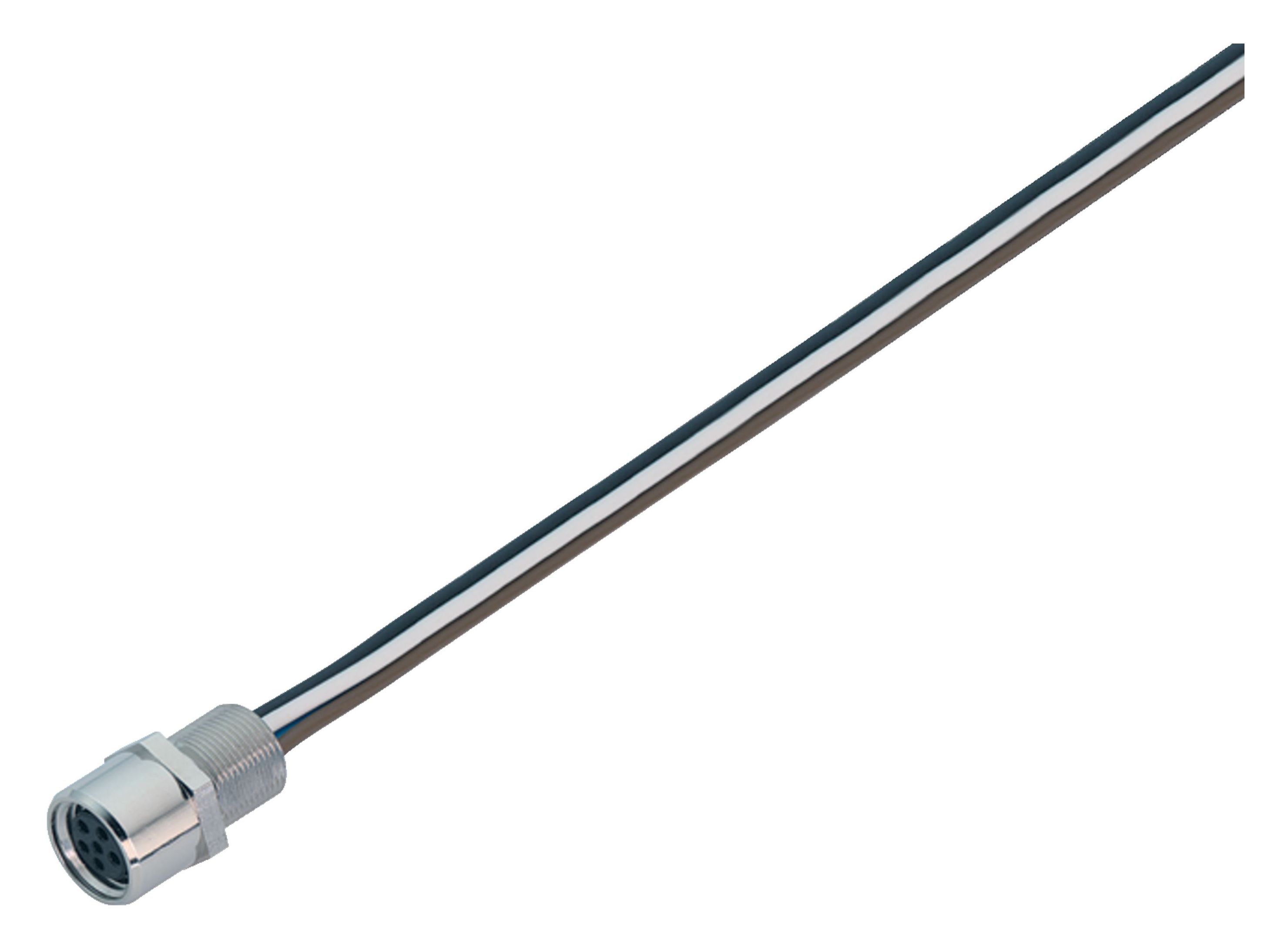

M8 Female panel mount connector, Contacts: 8, unshielded, single wires, IP67/IP69K, UL, M8x0.5

M8, series 718, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 76 6018 0111 00008-0200
Alternative part no.: 09 3486 00 08
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Female panel mount connector
Type standard DIN EN 61076-2-104
Wire length 0.2 m (Standard 0.2m. Other lengths are available on request).
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP67/IP69K
Cross-sectional area 0.14 mm² / AWG 26
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 9.08
Customs tariff number 85369010
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current 1.5 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material CuZn (Brass nickel plated)
Contact body material PA black
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 907d9ce9-31ae-4539-8694-9d126a755314
eCl@ss 11.1 27-44-01-03
ETIM 9.0 EC003570
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
