  4. M8/M8 Connecting cable male cable connector - female angled connector, Contacts: 6, unshielded, moulded on the cable, IP67, UL, PUR, black, 6 x 0.25 mm², 2 m
Part no.: 77 3408 3405 50006-0200

M8/M8 Connecting cable male cable connector - female angled connector, Contacts: 6, unshielded, moulded on the cable, IP67, UL, PUR, black, 6 x 0.25 mm², 2 m

M8, series 718, Automation Technology - Sensors and Actuators
Available numbers of contacts
(Standard 1 m and 2 m. Other lengths are available on request.)
Compare product
Downloads
This female cable connector with male cable connector - female angled cable connector with screw locking and a pin count of 6 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this unshielded M8 connecting cable male cable connector - female angled panel mount connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 30 V and the rated current of 1,5 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.

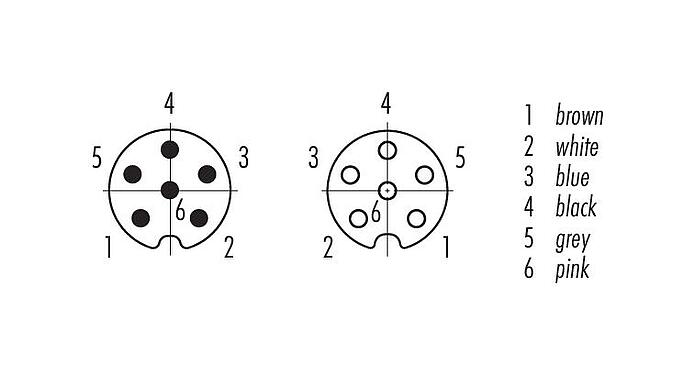

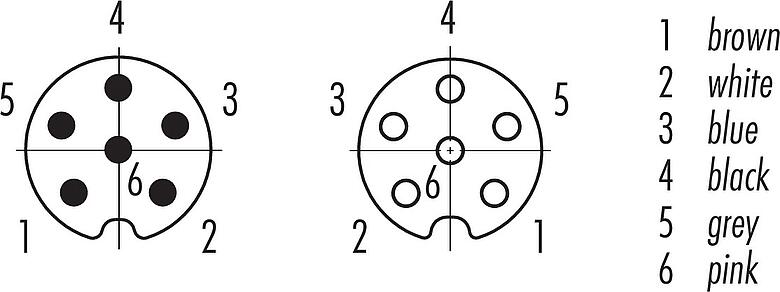

General features
Moreless
Part no. 77 3408 3405 50006-0200
Connector design Connecting cable male cable connector - female angled connector
Type standard DIN EN 61076-2-104
Cable length 2 m (Standard 1 m and 2 m. Other lengths are available on request.)
Version Connecting cable
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.34 mm² / AWG 24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 66
Customs tariff number 85444290
Country of Origin DE
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current 1.5 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PUR
Contact body material PUR
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number c2e9d214-2f1b-4d14-a493-ec9eb2de2f04
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Moreless
Structure of the cable
Cable diameter 5.0 mm
Cross section 6 x 0.25 mm²
Sheath material PUR
Single-lead insulation PP9Y halogen-free
Single-lead structure 32 x 0.10 mm
Cable color black
Electrical properties
Operating voltage ≤ 300 V
Cable test voltage ≥ 2500 V effective
Conductor resistance 79 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Bending cycles > 2 million
Permitted acceleration ≥ 5 m/s² + 1 m/s²
Travel distance, horizontal ≥ 5 m
Travel distance, vertical ≥ 5 m
Travel speed at 5 m horizontal path -> 200 m/min
Thermal properties
Temperature range cable in move from/to -25 °C / 80 °C
Temperature range cable fixed from/to -50 °C / 80 °C
Other features
Halogen free yes
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
