  2. Automation technology - Sensors and actuators
  3. M8
  4. M8 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, PUR, black, 4 x 0.34 mm², 2 m
Part no.: 77 3505 0000 50704-0200

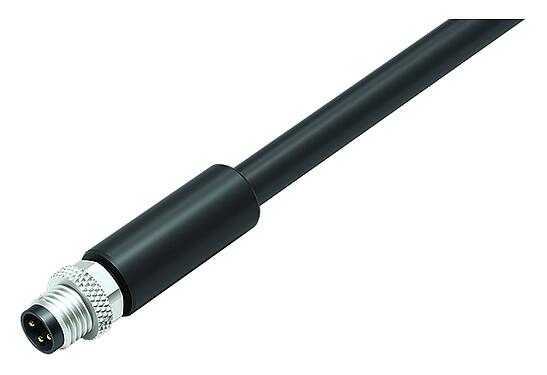

M8 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, PUR, black, 4 x 0.34 mm², 2 m

M8, series 718, Automation Technology - Sensors and Actuators

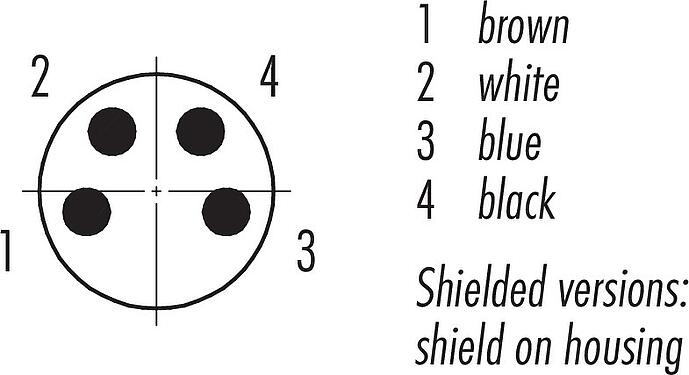

Available numbers of contacts
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
Downloads

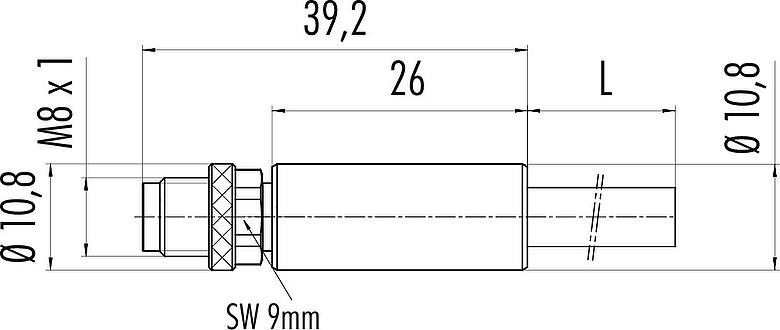

This male cable connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this shielded M8 male cable connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
Moreless
Part no. 77 3505 0000 50704-0200
Connector design Male cable connector
Type standard DIN EN 61076-2-104
Cable length 2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector pin straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.34 mm² / AWG 22
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 83.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance > 108 Ω
Pollution degree 3
Insulating material group II
EMC compliance shielded
Shield connection Screen on shield sleeve
Voltage 1000 V DC
Contact body material PUR
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number ad2fdf26-6c35-494f-ba7c-bc77166264e8
ETIM 9.0 EC002638
Cable data
Moreless
Structure of the cable
Cable diameter 4.7 mm
Cross section 4 x 0.34 mm²
Sheath material PUR
Single-lead insulation PP9Y halogen-free
Single-lead structure 42 x 0.10 mm
Cable color black
Electrical properties
Conductor resistance 60 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Bending cycles > 2 million
Permitted acceleration 5 m/s²
Travel distance, horizontal 5 m
Travel distance, vertical 5 m
Travel speed 200 m/min
Thermal properties
Temperature range cable in move from/to -30 °C / 90 °C
Temperature range cable fixed from/to -50 °C / 90 °C
Other features
Halogen free yes
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
