Part no.: 77 3506 0000 50003-0200
M8 Female cable connector, Contacts: 3, shielded, moulded on the cable, IP67, PUR, black, 3 x 0.34 mm², 2 m
M8, series 718, Automation Technology - Sensors and Actuators
This female cable connector with screw locking and a pin count of 3 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this shielded M8 female cable connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.

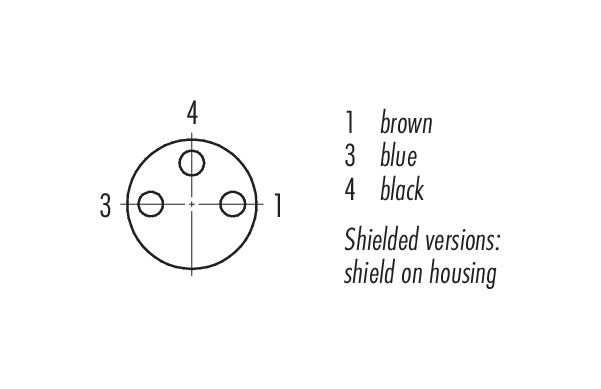

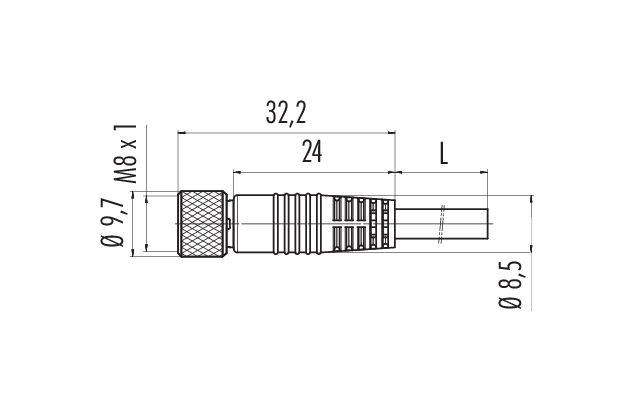

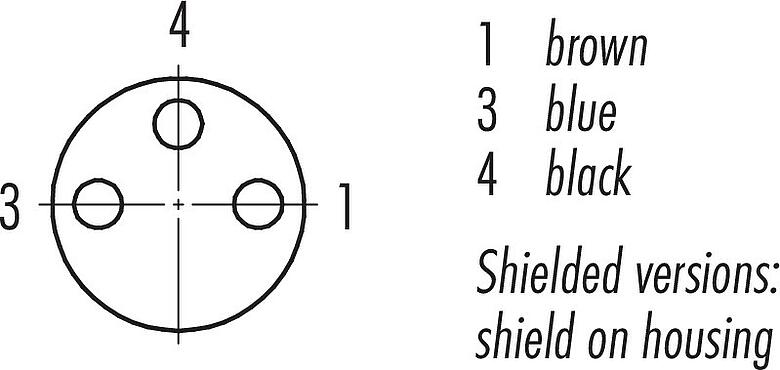

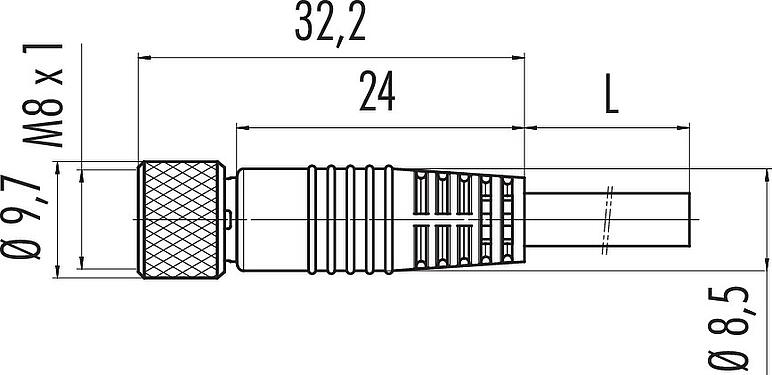

General features
MorelessPart no. |
77 3506 0000 50003-0200
Alternative part no.: 79 3506 52 03
|
Notice |
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More |
Connector design | Female cable connector |
Type standard | DIN EN 61076-2-104 |
Cable length | 2 m (Standard 2 m and 5 m. Other lengths are available on request.) |
Version | Connector socket straight |
Connector locking system | screw |
Termination | moulded on the cable |
Degree of protection | IP67 |
Cross-sectional area | 0.34 mm² / AWG 22 |
Temperature range from/to | -25 °C / 85 °C |
Mechanical operation | > 100 Mating cycles |
Weight (g) | 70.00 |
Customs tariff number | 85444290 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 50 V (AC) / 60 V (DC) |
Rated impulse voltage | 1500 V |
Rated current | 4.0 A |
Pollution degree | 3 |
Overvoltage category | III |
Insulating material group | II |
EMC compliance | shielded |
Shield connection | Shield on the threaded ring |
Material
MorelessHousing material | PUR |
Contact body material | PUR |
Contact material | CuZn (brass) |
Contact plating | Au (gold) |
Locking material | CuZn (brass) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | ed6a9ebc-de03-472a-9534-981af4fa530c |
Classifications
MorelesseCl@ss 11.1 | 27-06-03-11 |
ETIM 9.0 | EC002638 |
Declarations of conformity
MorelessLow Voltage Directive | 2014/35/EU (EN 60529:1991;EN 60204-1:2018) |
RoHS Directive | 2011/65/EU (EN 50581:2012) |
Cable data
MorelessStructure of the cable | |
Cable diameter | 4.6 mm |
Cross section | 3 x 0.34 mm² |
Sheath material | PUR |
Single-lead insulation | PP9Y halogen-free |
Single-lead structure | 42 x 0.10 mm |
Cable color | black |
Electrical properties | |
Conductor resistance | 60 Ω/Km (20°C) |
Mechanical properties | |
Bending radius, fixed cable | ≥ 5 x Ø |
Bending radius, moving cable | ≥ 10 x Ø |
Bending cycles | > 2 million |
Permitted acceleration | 5 m/s² + 1 m/s² |
Travel distance, horizontal | 5 m/s² -> 5 m |
Travel distance, vertical | 5 m/s² -> 2 m |
Travel speed | ≤ 200 m/min (5 m horizontal distance) |
Thermal properties | |
Temperature range cable in move from/to | -25 °C / 90 °C |
Temperature range cable fixed from/to | -50 °C / 90 °C |
Other features | |
Halogen free | yes |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 40 cNm).
