  2. Automation technology - Sensors and actuators
  3. M8

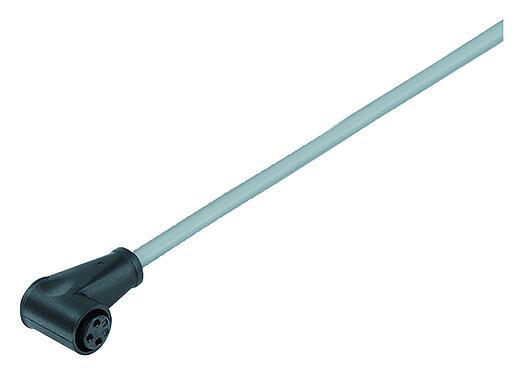

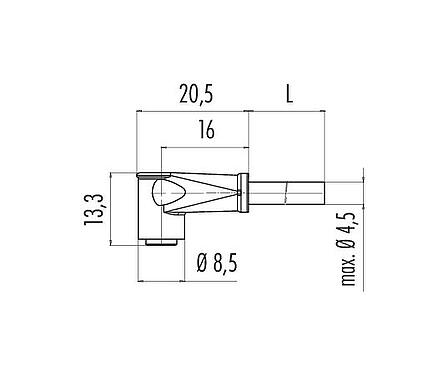

  4. Snap-In Female angled connector, Contacts: 4, unshielded, moulded on the cable, IP65, PVC, black, 4 x 0.25 mm², 5 m
Part no.: 79 3388 45 04

Snap-In Female angled connector, Contacts: 4, unshielded, moulded on the cable, IP65, PVC, black, 4 x 0.25 mm², 5 m

M8, series 718, Automation Technology - Sensors and Actuators
Available numbers of contacts
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
Downloads
This female angled connector with snap-in locking system and a pin count of 4 is according to its protection class IP65 Dustproof and complete protection against contact. Protected against dust in harmful quantity. Protection against water jets (nozzle) from any angle.. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/70 °C is this unshieldede M8 female angled panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
Moreless
Part no. 79 3388 45 04
Connector design Female angled connector
Type standard DIN EN 61076-2-104
Cable length 5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector socket angled
Connector locking system snap-in
Termination moulded on the cable
Degree of protection IP65
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 70 °C
Mechanical operation > 100 Mating cycles
Weight (g) 155.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PUR
Contact body material PUR
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 591f5c16-1ebb-46bd-b066-dbbc1add7ae3
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Moreless
Structure of the cable
Cable diameter 4.5 mm
Cross section 4 x 0.25 mm²
Sheath material PVC
Single-lead insulation PVC
Single-lead structure 32 x 0.10 mm
Cable color black
Electrical properties
Conductor resistance 79.9 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Bending cycles > 5 million
Thermal properties
Temperature range cable in move from/to -5 °C / 70 °C
Temperature range cable fixed from/to -25 °C / 70 °C
Other features
Halogen free no
