Part no.: 79 3411 45 04

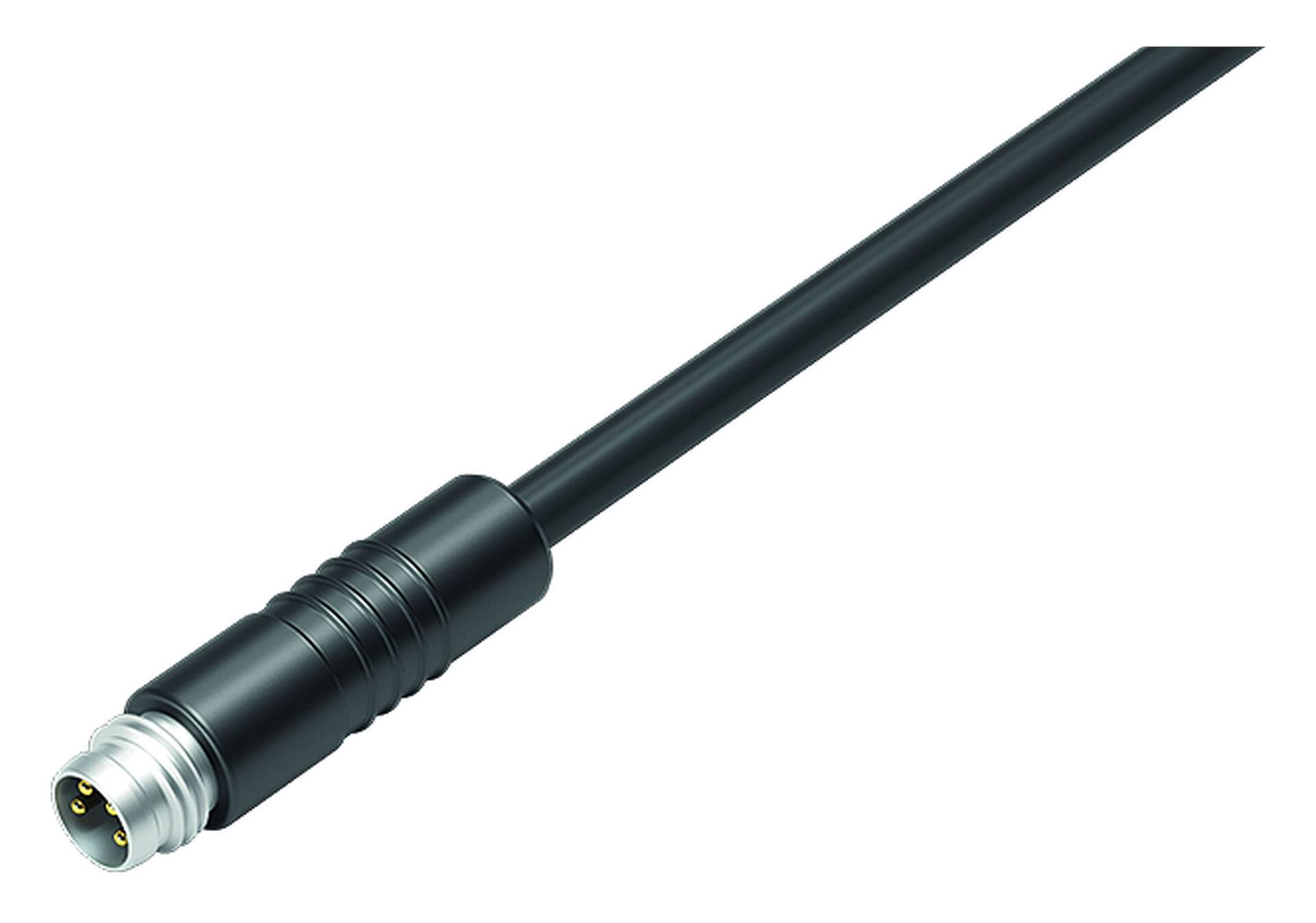

Male cable connector, PVC, black, 4 x 0.25 mm²
M8, series 718, Automation Technology - Sensors and Actuators
General features
MorelessPart no. | 79 3411 45 04 |
Connector design | Male cable connector |
Weight (g) | 0.00 |
Customs tariff number | 85444290 |
Country of Origin | DE |
Material
MorelessREACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | 0d04855d-9a9e-4b94-aee3-dbddcb516e39 |
Classifications
MorelessETIM 9.0 | EC002638 |
Cable data
MorelessStructure of the cable | |
Cable diameter | 4.5 mm |
Cross section | 4 x 0.25 mm² |
Sheath material | PVC |
Single-lead insulation | PVC |
Single-lead structure | 32 x 0.10 mm |
Cable color | black |
Electrical properties | |
Conductor resistance | 79.9 Ω/Km (20°C) |
Mechanical properties | |
Bending radius, fixed cable | ≥ 5 x Ø |
Bending radius, moving cable | ≥ 10 x Ø |
Bending cycles | > 5 million |
Thermal properties | |
Temperature range cable in move from/to | -5 °C / 70 °C |
Temperature range cable fixed from/to | -25 °C / 70 °C |
Other features | |
Halogen free | no |
General Disclaim Notice
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
