Part no.: 79 3418 52 05

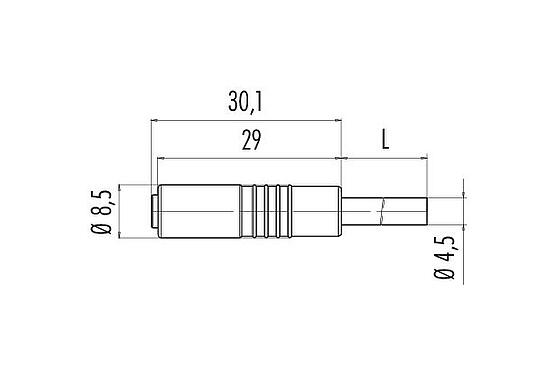

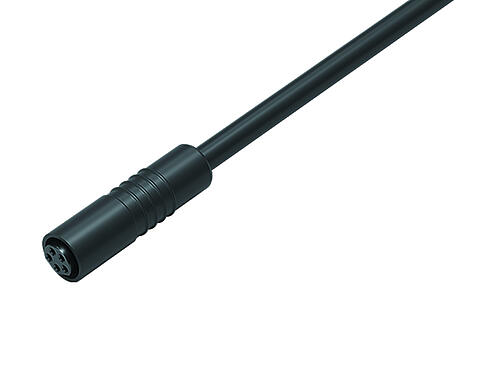

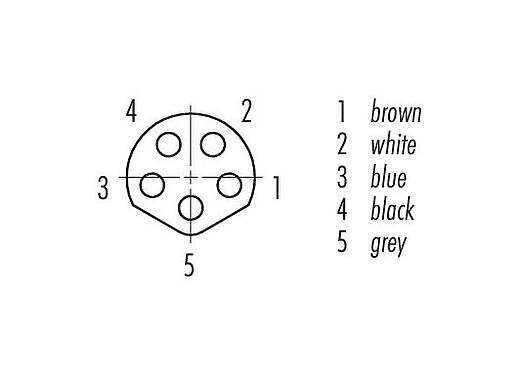

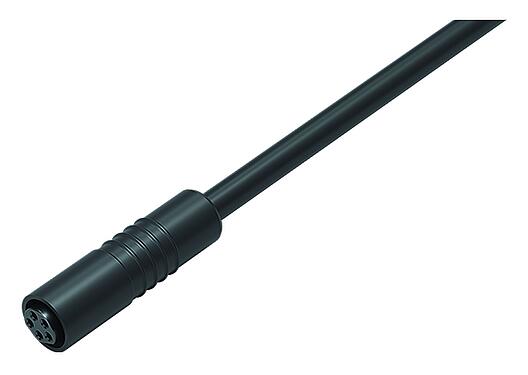

Snap-In Female cable connector, Contacts: 5, unshielded, moulded on the cable, IP65, PUR, black, 5 x 0.34 mm², 2 m
M8, series 718, Automation Technology - Sensors and Actuators
This female cable connector with snap-in locking system and a pin count of 5 is according to its protection class IP65 Dustproof and complete protection against contact. Protected against dust in harmful quantity. Protection against water jets (nozzle) from any angle.. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/70 °C is this unshieldede M8 female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 30 V and the rated current of 3,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
Moreless| Part no. | 79 3418 52 05 |
| Connector design | Female cable connector |
| Type standard | DIN EN 61076-2-104 |
| Cable length | 2 m (Standard 2 m and 5 m. Other lengths are available on request.) |
| Version | Connector socket straight |
| Connector locking system | snap-in |
| Termination | moulded on the cable |
| Degree of protection | IP65 |
| Cross-sectional area | 0.34 mm² / AWG 22 |
| Temperature range from/to | -25 °C / 70 °C |
| Mechanical operation | > 50 Mating cycles |
| Weight (g) | 74.00 |
| Customs tariff number | 85444290 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 30 V |
| Rated impulse voltage | 800 V |
| Rated current | 3,0 A |
| Insulation resistance | ≤ 3 mΩ |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| EMC compliance | unshielded |
Material
Moreless| Contact body material | PUR |
| Contact material | CuZn (brass) / CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | CuZn (brass) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 05914ae3-da2f-4d5d-a495-7b5fd176e91c |
Classifications
Moreless| ETIM 9.0 | EC002638 |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 5.0 mm |
| Cross section | 5 x 0.34 mm² |
| Sheath material | PUR |
| Single-lead insulation | PP |
| Single-lead structure | 43 x 0.10 mm |
| Cable color | black |
| Electrical properties | |
| Operating voltage | 300 V |
| Cable test voltage | ≥ 2000 V effective |
| Conductor resistance | 60 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 10 x Ø |
| Bending radius, moving cable | ≥ 5 x Ø |
| Bending cycles | > 5 million |
| Permitted acceleration | 5 m/s² |
| Travel distance, horizontal | at 5 m/s² -> 5 m |
| Travel distance, vertical | at 5 m/s² -> 5 m |
| Travel speed | at 5 m horizontal path -> 200 m/min |
| Thermal properties | |
| Temperature range cable in move from/to | -25 °C / 90 °C |
| Temperature range cable fixed from/to | -50 °C / 90 °C |
| Other features | |
| Halogen free | yes |
