  4. M8 Male panel mount connector, Contacts: 4, shieldable, THT, IP67, UL, front fastened
Part no.: 86 6319 1120 00004

M8 Male panel mount connector, Contacts: 4, shieldable, THT, IP67, UL, front fastened

M8, series 718, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads

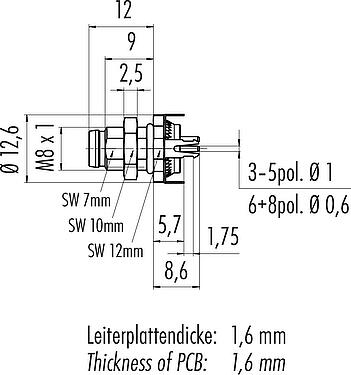

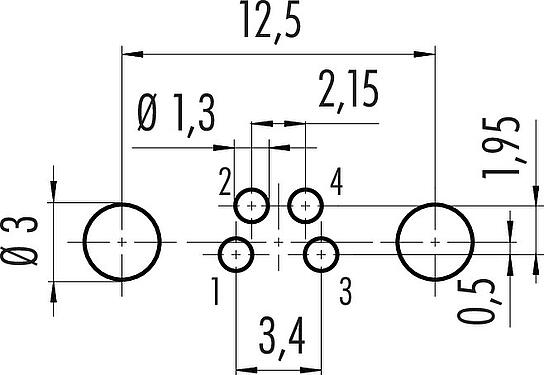

This male panel mount connector mit with screw locking system and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shieldable M8 male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
Moreless
Part no. 86 6319 1120 00004
Alternative part no.: 09 3421 81 04
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Male panel mount connector
Type standard DIN EN 61076-2-104
Version Connector pin straight
Connector locking system screw/snap-in
Termination THT
Degree of protection IP67
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 4.54
Customs tariff number 85369010
Country of Origin DE
Rated voltage 50 V (AC) / 60 V (DC)
Rated impulse voltage 1500 V
Rated current 4.0 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance shieldable
Shield connection Shielding plate
Housing material Zinc die-cast nickel-plated
Contact body material PA black
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 693d88b0-79a1-4b10-a78c-45a5ffb9c6ac
Approvals UL
Norms and regulations DIN EN 61373
DIN EN 45545-2 (nicht klassifizierte brennbare Masse <10g)
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
