Part no.: 86 6919 0002 00704
M8 Male receptacle, Contacts: 4, unshielded, solder, IP65
M8, series 718, Automation Technology - Sensors and Actuators
General features
MorelessPart no. |
86 6919 0002 00704
Alternative part no.: 09 3415 00 04
|
Notice |
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More |

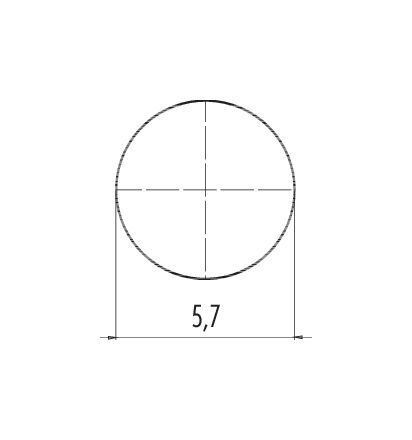

Connector design | Male receptacle |
Type standard | DIN EN 61076-2-104 |
Version | Connector pin straight |
Connector locking system | snap-in, screw |
Termination | solder |
Degree of protection | IP65 |
Cross-sectional area | 0.25 mm² / AWG 24 |
Temperature range from/to | -40 °C / 70 °C |
Mechanical operation | > 100 Mating cycles |
Weight (g) | 1.40 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 50 V (AC) / 60 V (DC) |
Rated impulse voltage | 1500 V |
Rated current | 4.0 A |
Pollution degree | 3 |
Overvoltage category | II |
Insulating material group | II |
EMC compliance | unshielded |
Material
MorelessHousing material | CuZn (Brass nickel plated) |
Contact body material | PA |
Contact material | CuZn (brass) |
Contact plating | Au (gold) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | c99ceba9-f7af-49d7-96ec-7041249eb239 |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-09 |
ETIM 9.0 | EC003569 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
