Part no.: 99 0610 70 04

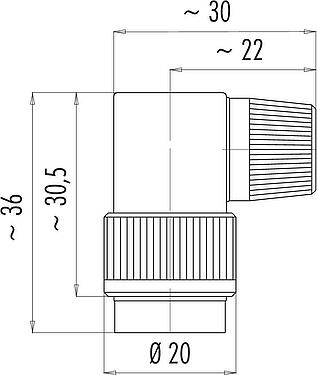

Female angled connector, Contacts: 4, 4.0-6.0 mm, unshielded, solder, IP40
Bayonet, series 678
|Part no.||99 0610 70 04|
|Connector design||Female angled connector|
|Version||Connector socket angled|
|Connector locking system||Bayonet|
|Degree of protection||IP40|
|Cross-sectional area||max. 0.75 mm² / AWG 18|
|Cable outlet||4.0-6.0 mm|
|Temperature range from/to||-40 °C / 85 °C|
|Mechanical operation||> 500 Mating cycles|
|Customs tariff number||85369010|
|Rated voltage||250 V|
|Rated impulse voltage||1500 V|
|Rated current (40 °C)||6.0 A|
|Insulation resistance||≥ 10¹⁰ Ω|
|Insulating material group||III|
|Contact body material||PBT (UL94 V-0)|
|Contact material||CuSn (bronze)|
|Contact plating||Ag (silver)|
CAS 7439-92-1 (Lead)|
Declarations of conformityMoreless
|Low Voltage Directive||2014/35/EU (EN 60204-1:2018;EN 60529:1991)|
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
