Part no.: 09 0311 702 04

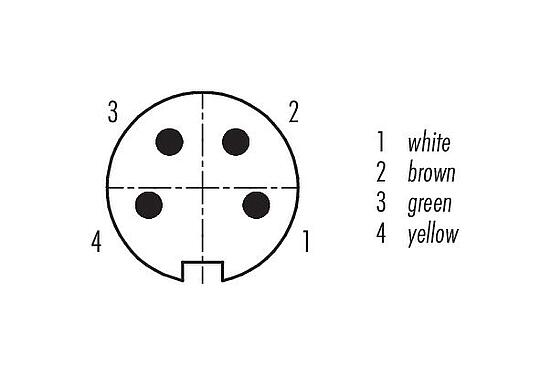

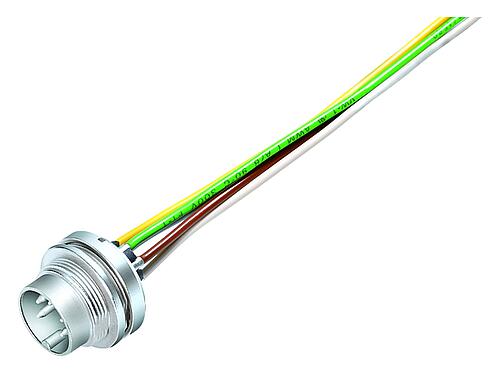

M16 Male panel mount connector, Contacts: 4 (04-a), unshielded, single wires, IP40
M16 IP40, series 680, Miniature Connectors
This male panel mount connector with screw locking and a pin count of 4 (04-a) is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -30 °C/85 °C is this unshielded M16 IP40 male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 300 V and the rated current of 5,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-106.
General features
MorelessPart no. | 09 0311 702 04 |
Connector design | Male panel mount connector |
Type standard | DIN EN 61076-2-106 |
Version | Connector pin straight |
Connector locking system | screw |
Termination | single wires |
Degree of protection | IP40 |
Cross-sectional area | AWG 22 |
Temperature range from/to | -30 °C / 85 °C |
Mechanical operation | > 500 Mating cycles |
Weight (g) | 16.05 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 300 V |
Rated impulse voltage | 1500 V |
Rated current | 5.0 A |
Insulation resistance | ≥ 1010 Ω |
Pollution degree | 1 |
Overvoltage category | I |
Insulating material group | II |
EMC compliance | unshielded |
Material
MorelessContact body material | PBT (UL94 V-0) |
Contact material | CuSn (bronze) |
Contact plating | Ag (silver) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | 8fd33cec-8e16-4129-bdc3-51e1051d2e54 |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-09 |
ETIM 9.0 | EC003569 |
