  4. M16 IP40 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened
Part no.: 09 0327 99 07

M16 IP40 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened

M16, series 680, Miniature Connectors
Compare product

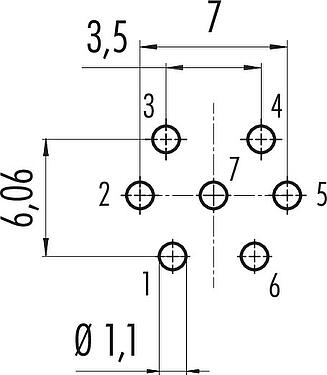

General features
Part no. 09 0327 99 07
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination THT
Degree of protection IP40
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 12.57
Customs tariff number 85369010
Rated voltage 125 V
Rated impulse voltage 800 V
Rated current (40 °C) 5.0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number e00269da-887e-4eea-be92-4cd21ae90bd0
eCl@ss 11.1 27-44-01-09
ETIM 7.0 EC003569
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Data sheet
Data sheet 09 0327 99 07
09 0327 99 07
09 0327 99 07
