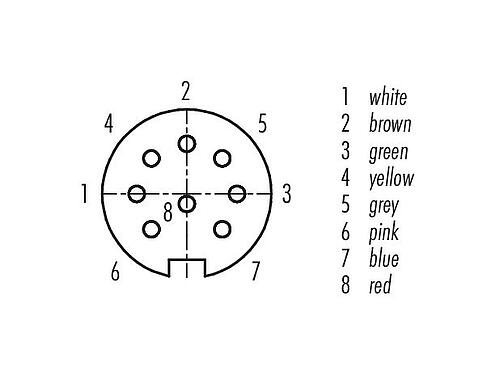

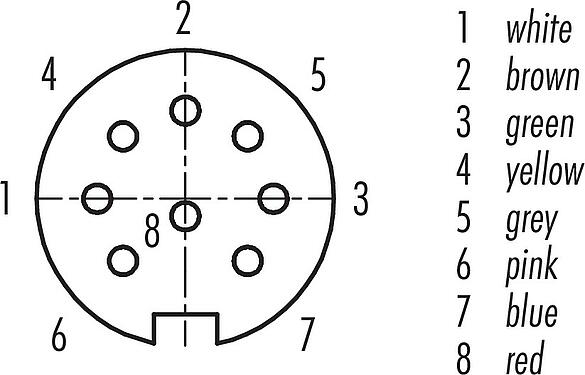

  4. M16 Female panel mount connector, Contacts: 8 (08-a), unshielded, single wires, IP40
Part no.: 09 0474 782 08

M16 Female panel mount connector, Contacts: 8 (08-a), unshielded, single wires, IP40

M16 IP40, series 680, Miniature Connectors
Compare product
This female panel mount connector with screw locking and a pin count of 8 (08-a) is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -30 °C/85 °C is this unshielded M16 IP40 female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 5,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-106.
General features
Part no. 09 0474 782 08
Connector design Female panel mount connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP40
Cross-sectional area AWG 22
Temperature range from/to -30 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 18.68
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group II
EMC compliance unshielded
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 2e795541-7dad-40fd-b5fd-3e1ea5ec417c
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
