  4. M16 Female panel mount connector, Contacts: 4 (04-a), shieldable, THT, IP67, UL, front fastened
Part no.: 09 0112 290 04

M16 Female panel mount connector, Contacts: 4 (04-a), shieldable, THT, IP67, UL, front fastened

M16 IP67, series 723, Miniature Connectors
General features
Moreless
Part no. 09 0112 290 04
Connector design Female panel mount connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw

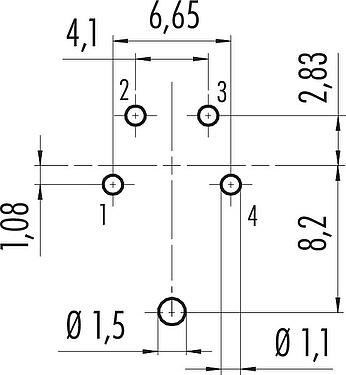

Termination THT
Degree of protection IP67
Temperature range from/to -40 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 9.32
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 1500 V
Rated current 6.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection Shield pin
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number bacebb70-4f2c-4855-aa09-ba1ce150ceef
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".

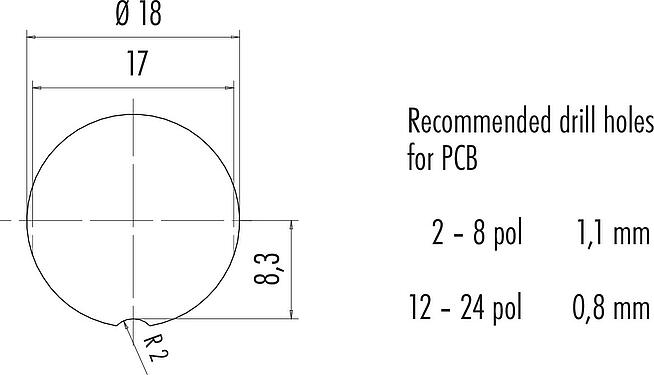

  7. The protection class specification applies on condition that the four mounting holes are made as blind holes.
