  4. M16 Female angled connector, Contacts: 2 (02-a), 4.0-6.0 mm, shieldable, solder, IP67, UL
Part no.: 99 5102 75 02

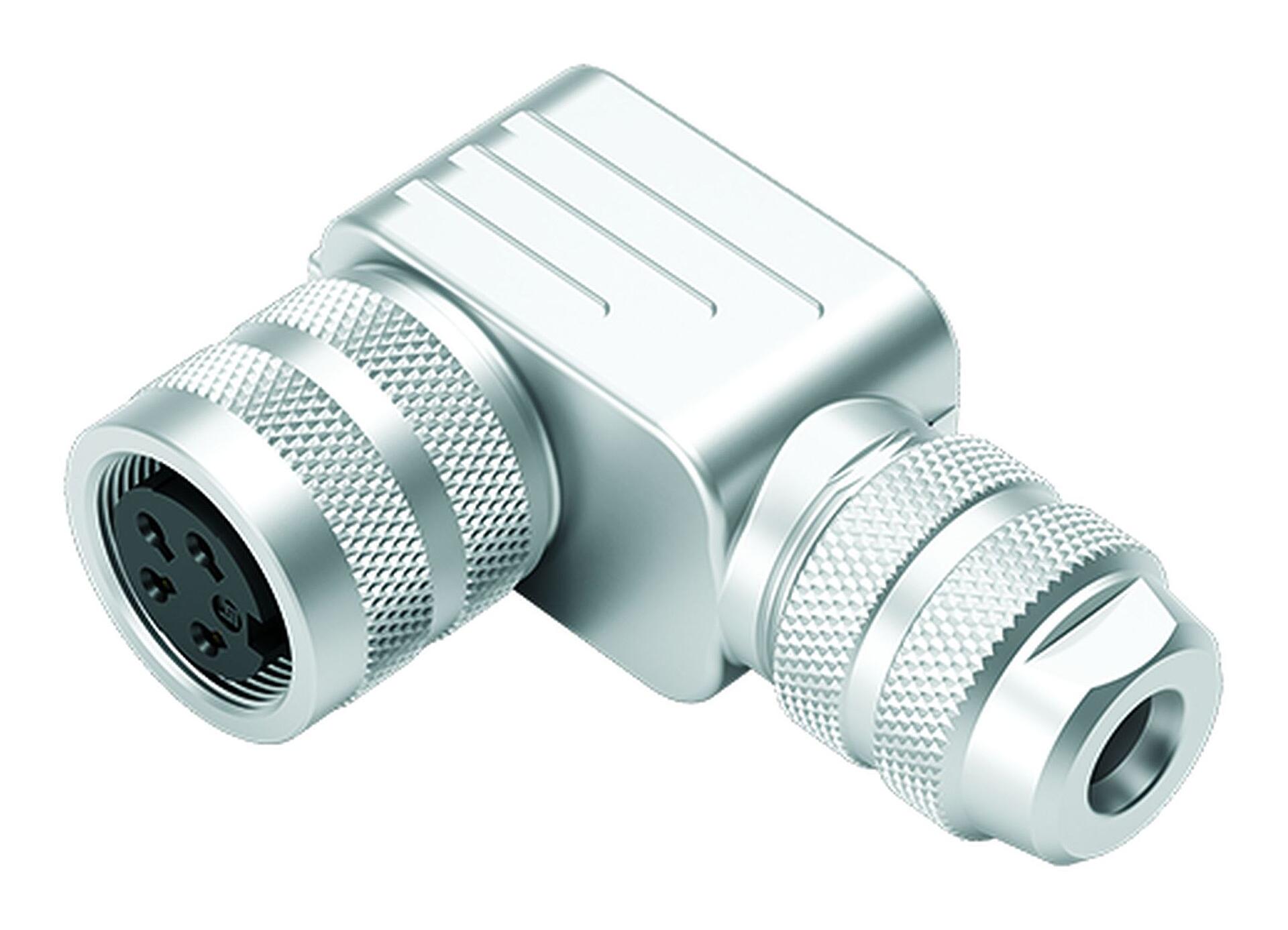

M16 Female angled connector, Contacts: 2 (02-a), 4.0-6.0 mm, shieldable, solder, IP67, UL

M16 IP67, series 423, Miniature Connectors
Compare product
Downloads
This female angled connector with screw locking and a pin count of 2 (02-a) is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -30 °C/95 °C is this shieldable M16 IP67 female angled panel mount connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 250 V and the rated current of 7,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-106.
General features
Moreless
Part no. 99 5102 75 02
Connector design Female angled connector
Type standard DIN EN 61076-2-106
Version Connector socket angled
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 4.0-6.0 mm
Twistability 90° (4 coding options)
Temperature range from/to -30 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 72.16
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 1500 V
Rated current 7.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection Shielding ring
Housing material CuZn (Brass nickel plated)
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC CAS 96-45-7 (Imidazolidine-2-thione)
CAS 7439-92-1 (Lead)
SCIP number db136066-36c4-449e-bc33-cadaa4569826
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  8. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
