  2. Miniature connectors
  3. M16 IP67
  4. M16 Female cable connector, Contacts: 6 (06-a), 4.1-7.8 mm, shieldable, crimping, IP67, UL, Short version
Part no.: 99 5122 760 06

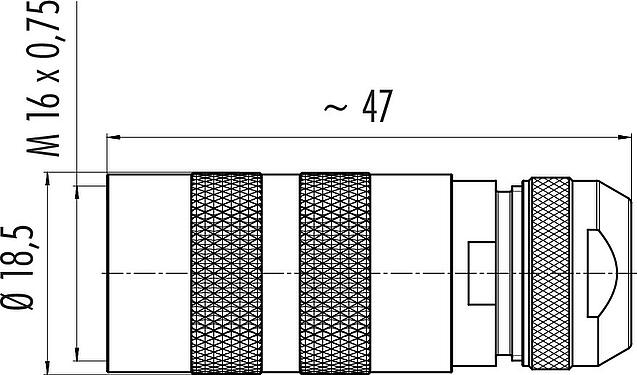

M16 Female cable connector, Contacts: 6 (06-a), 4.1-7.8 mm, shieldable, crimping, IP67, UL, Short version

M16 IP67, series 423, Miniature Connectors
Compare product
Downloads
This female cable connector with screw locking and a pin count of 6 (06-a) is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -40 °C/100 °C is this shieldable M16 IP67 female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 150 V and the rated current of 6,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-106.
General features
Moreless
Part no. 99 5122 760 06
Connector design Female cable connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination crimping
Degree of protection IP67
Cross-sectional area 0.14-1.00 mm² / AWG 26-18
Cable outlet 4.1-7.8 mm
Temperature range from/to -40 °C / 100 °C
Mechanical operation > 500 Mating cycles
Additional information Short version
Weight (g) 40.78
Customs tariff number 85369010
Country of Origin DE
Rated voltage 150 V
Rated impulse voltage 1500 V
Rated current 6.0 A
Pollution degree 2
Overvoltage category II
Insulating material group III
EMC compliance shieldable
Shield connection cable clamp
Housing material CuZn (Brass nickel plated)
Contact body material PBT
Contact plating depending on crimp contact (accessory)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 4d5ff308-ac33-4296-a8b4-df3420e5a071
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
