Name: Snap-in IP67
Brand: binder
SKU: 72 9138 500 04

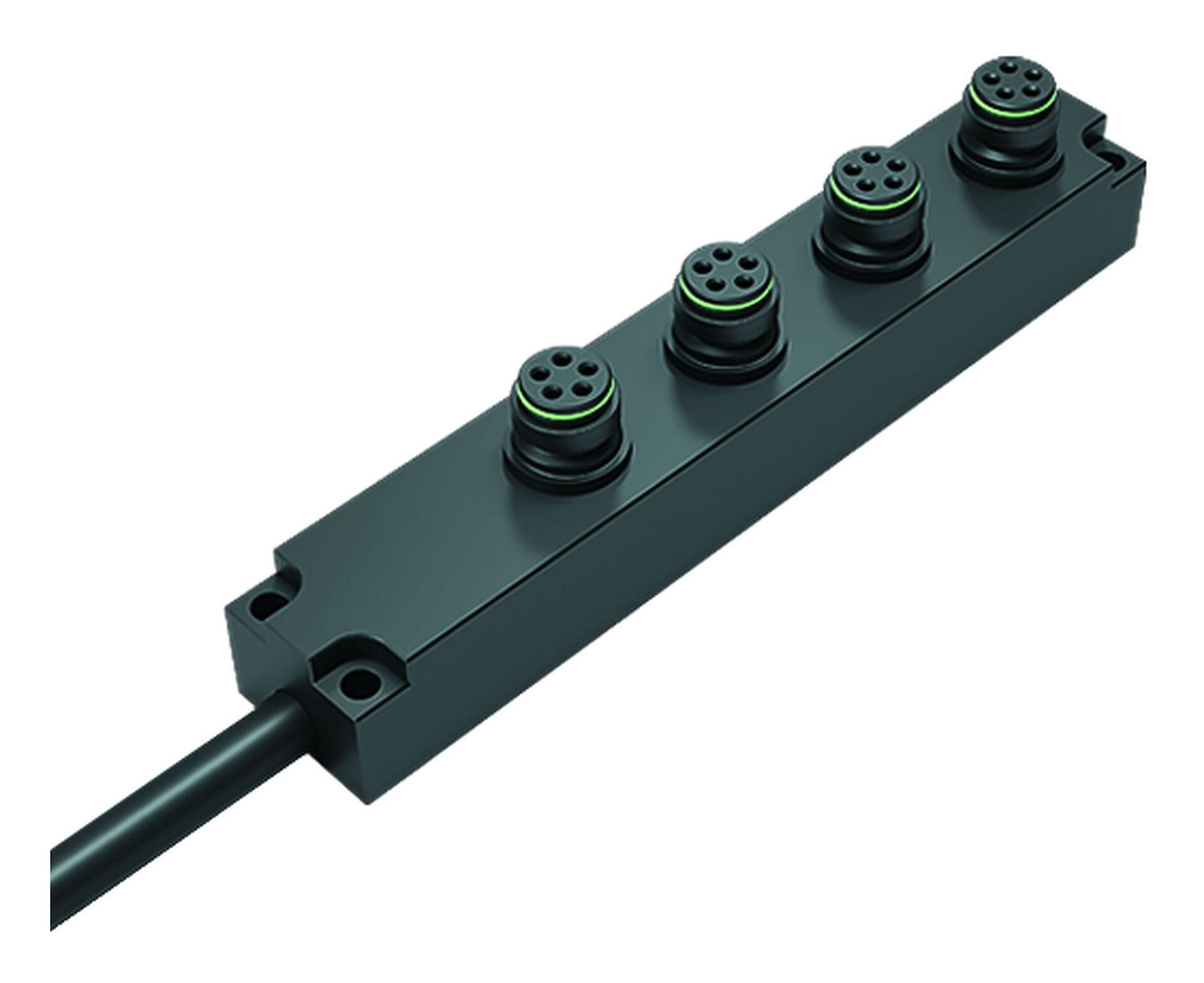

Illustration 72 9138 500 04 - Snap-In 4-way distributor, Contacts: 5, unshielded, moulded on the cable, IP67, 5 x 0.75 mm² — Illustration

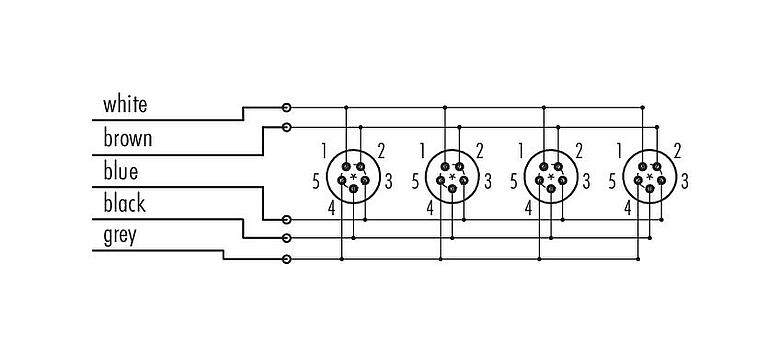

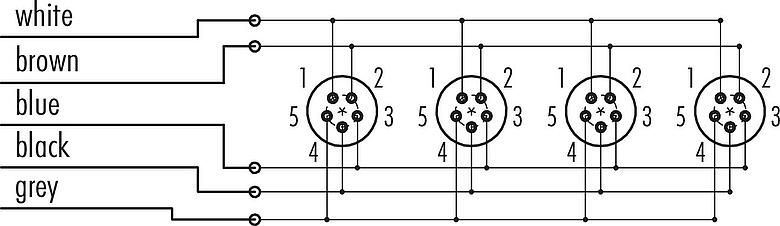

Pin assignment plans 72 9138 500 04 - Snap-In 4-way distributor, Contacts: 5, unshielded, moulded on the cable, IP67, 5 x 0.75 mm² — Pin assignment plans

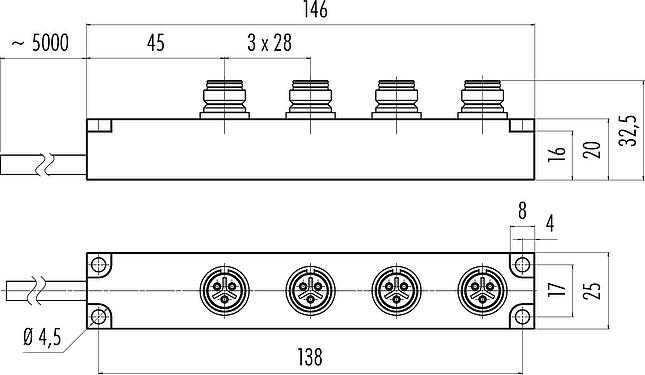

Scale drawing 72 9138 500 04 - Snap-In 4-way distributor, Contacts: 5, unshielded, moulded on the cable, IP67, 5 x 0.75 mm² — Scale drawing

Contact arrangement (Plug-in side) 72 9138 500 04 - Snap-In 4-way distributor, Contacts: 5, unshielded, moulded on the cable, IP67, 5 x 0.75 mm² — Contact arrangement (Plug-in side)

This 4-way disributor with snap-in locking system and a pin count of 5 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -40 °C/85 °C is this unshielded Snap-In IP67 4-way disributor designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 5,0 A it is perfectly tuned for its field of application.

Moreless

Part no.	72 9138 500 04
Connector design	4-way distributor
Version	Distribution Blocks
Connector locking system	snap-in
Termination	moulded on the cable
Degree of protection	IP67
Connection cross-section	0.75 mm²
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	618.30
Customs tariff number	85369010
Country of Origin	HU

Moreless

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	5.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	2
Insulating material group	II
EMC compliance	unshielded

Moreless

Housing material	PA66 (UL94 HB)
Contact body material	PA black
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	c42a4c58-2efb-4ae2-ba27-9843af760597

Moreless

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Moreless

Low Voltage Directive	2014/35/EU (EN 60204-1:2018 \| 2011/65/EU;EN 50581:2012 \| 2014/35/EU;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)

Moreless

Structure of the cable
Cross section	5 x 0.75 mm²

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
