Name: Snap-in IP67
Brand: binder
SKU: 72 9144 000 06

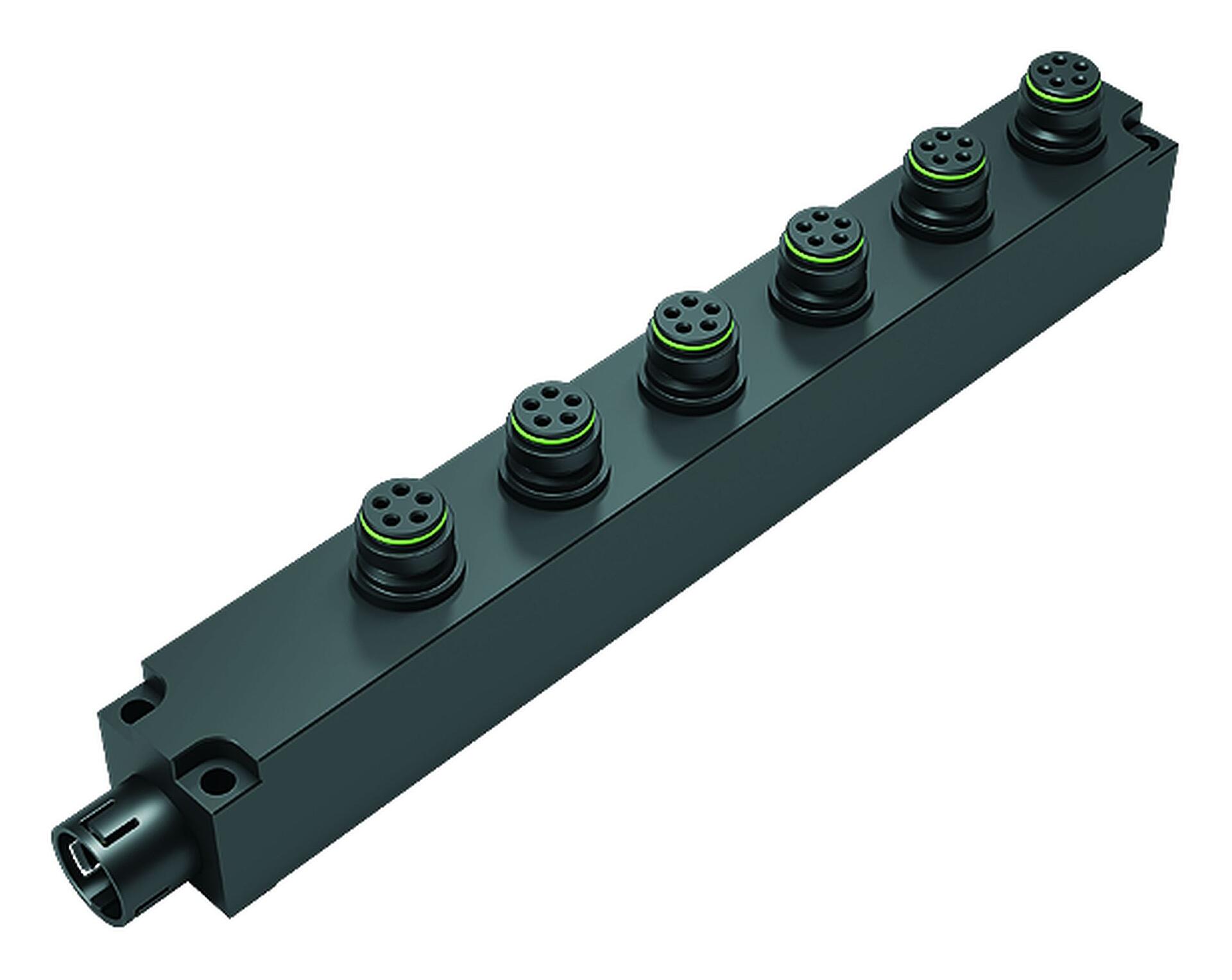

Illustration 72 9144 000 06 - Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67 — Illustration

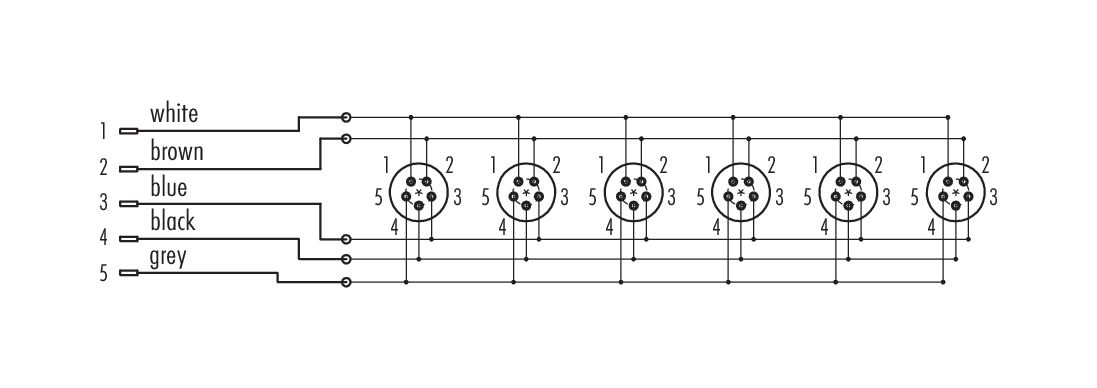

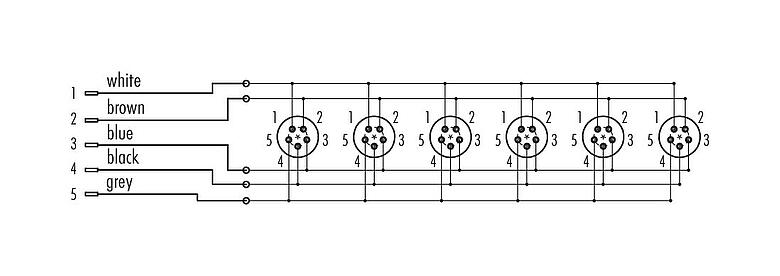

Pin assignment plans 72 9144 000 06 - Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67 — Pin assignment plans

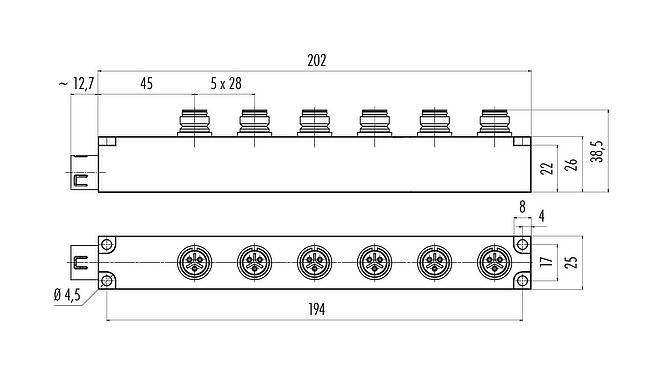

Scale drawing 72 9144 000 06 - Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67 — Scale drawing

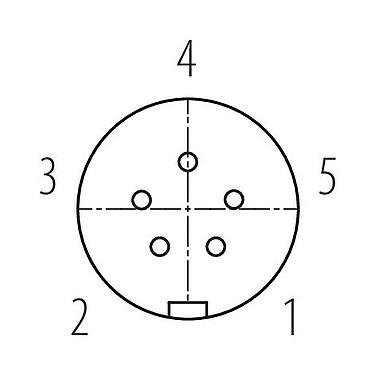

Contact arrangement (Plug-in side) 72 9144 000 06 - Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67 — Contact arrangement (Plug-in side)

This 6-way disributor with snap-in locking system and a pin count of 5 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -40 °C/85 °C is this unshielded Snap-In IP67 6-way disributor designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 5,0 A it is perfectly tuned for its field of application.

Moreless

Part no.	72 9144 000 06
Connector design	6-way distributor
Version	Distribution Blocks
Connector locking system	snap-in
Termination	pluggable
Degree of protection	IP67
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	212.95
Customs tariff number	85369010
Country of Origin	DE

Moreless

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	5.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	2
Insulating material group	II
EMC compliance	unshielded

Moreless

Housing material	PA66 (UL94 HB)
Contact body material	PA black
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	31bd88f0-8832-4c8b-a3a3-6db803888637

Moreless

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Moreless

Low Voltage Directive	2014/35/EU (EN 60204-1:2018 \| 2011/65/EU;EN 50581:2012 \| 2014/35/EU;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)
