Name: Snap-in IP67
Brand: binder
SKU: 77 6406 0000 50003-0200

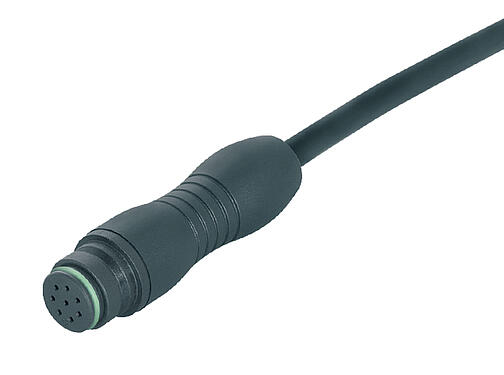

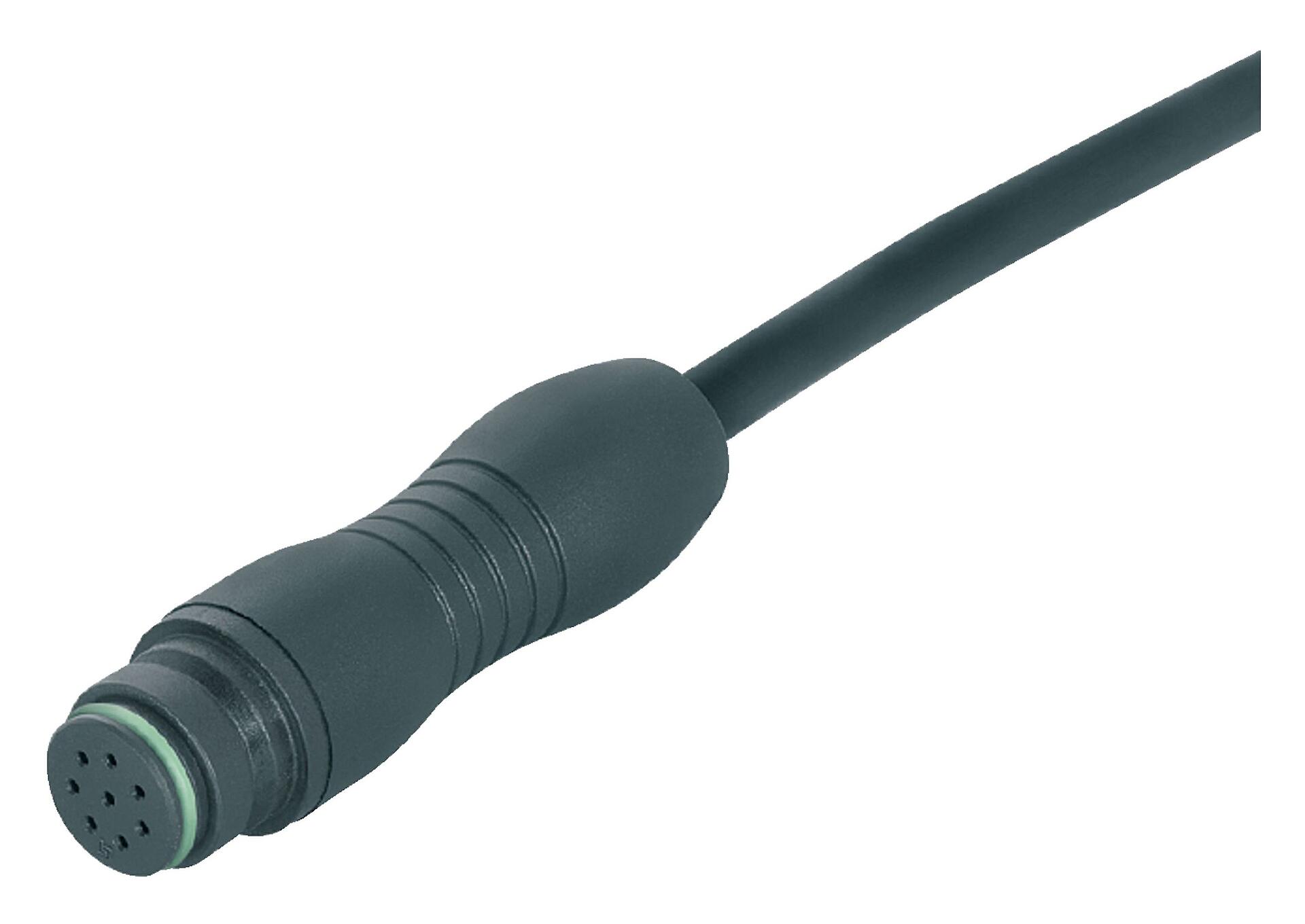

Illustration 77 6406 0000 50003-0200 - Snap-In Female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67, PUR, black, 3 x 0.75 mm², 2 m — Illustration

Scale drawing 77 6406 0000 50003-0200 - Snap-In Female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67, PUR, black, 3 x 0.75 mm², 2 m — Scale drawing

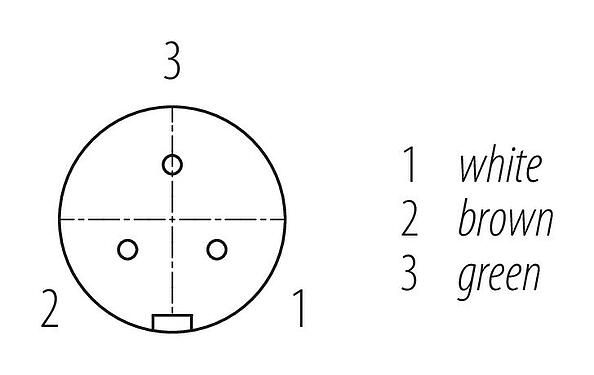

Contact arrangement (Plug-in side) 77 6406 0000 50003-0200 - Snap-In Female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67, PUR, black, 3 x 0.75 mm², 2 m — Contact arrangement (Plug-in side)

This female cable connector with snap-in locking system and a pin count of 3 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/70 °C is this unshieldede Snap-In IP67 female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 7,0 A it is perfectly tuned for its field of application.

Moreless

Part no.	77 6406 0000 50003-0200 Alternative part no.: 79 9150 020 03
Notice	Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right. More
Connector design	Female cable connector
Cable length	2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version	Connector socket straight
Connector locking system	snap-in
Termination	moulded on the cable
Degree of protection	IP67
Connection cross-section	0.75 mm² / AWG 18
Temperature range from/to	-25 °C / 70 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	275
Customs tariff number	85444290
Country of Origin	DE

Moreless

Rated voltage	250 V
Rated impulse voltage	2500 V
Rated current	7.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	2
Overvoltage category	II
Insulating material group	II
EMC compliance	unshielded

Moreless

Housing material	PUR
Contact body material	PA (UL94 V-0) black
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	9053b1ac-5a06-498a-83e5-18922708e897

Moreless

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Moreless

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)

Moreless

Structure of the cable
Cable diameter	6.9 mm
Cross section	3 x 0.75 mm²
Sheath material	PUR
Single-lead insulation	PVC
Single-lead structure	24 x 0.20 mm
Cable color	black
Electrical properties
Operating voltage	≤ 300 V
Conductor resistance	26 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable	5 x Ø
Thermal properties
Temperature range cable in move from/to	-5 °C / 70 °C
Temperature range cable fixed from/to	-40 °C / 80 °C
Other features
Halogen free	no

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
