Part no.: 99 9105 70 03

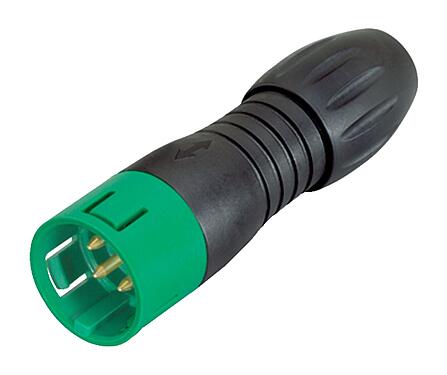

Snap-In IP67 Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67, VDE
Snap-In, series 720, Miniature Connectors
This male cable connector with snap-in locking system and a pin count of 3 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/85 °C is this unshielded Snap-In IP67 male cable connector designed for both severe cold and severe heat and has the VDE approval. Due to the qualified rated voltage of 250 V and the rated current of 7,0 A it is perfectly tuned for its field of application.
|Part no.||99 9105 70 03|
|Connector design||Male cable connector|
|Version||Connector pin straight|
|Connector locking system||snap-in|
|Degree of protection||IP67|
|Cross-sectional area||max. 0.75 mm² / AWG 18|
|Cable outlet||4.0-6.0 mm|
|Temperature range from/to||-25 °C / 85 °C|
|Mechanical operation||> 500 Mating cycles|
|Customs tariff number||85369010|
|Rated voltage||250 V|
|Rated impulse voltage||2500 V|
|Rated current (40 °C)||7.0 A|
|Insulation resistance||≥ 10¹⁰ Ω|
|Insulating material group||II|
|Contact body material||PA (UL94 HB) green|
|Contact material||CuZn (brass)|
|Contact plating||Au (gold)|
CAS 96-45-7 (Imidazolidine-2-thione)|
CAS 7439-92-1 (Lead)
