Part no.: 99 6328 000 09
B23 Female cable connector, Contacts: 9 (4+PE + 4), 8,0-17,0 mm, screw clamp, IP67, ENP: Power pin / Data socket

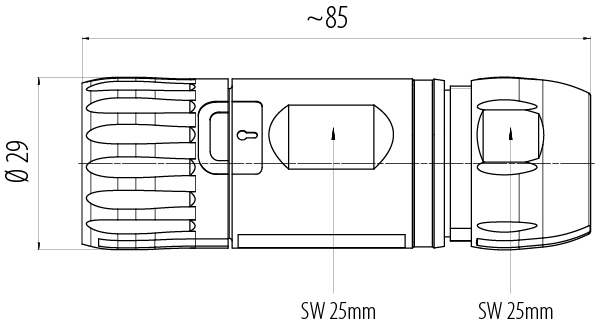

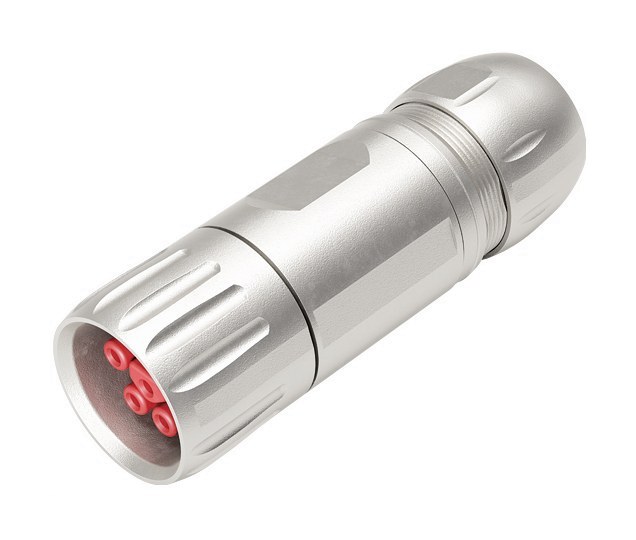

B23, series 523, Power Connectors

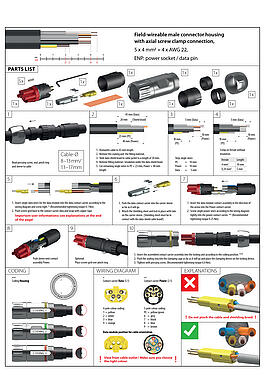

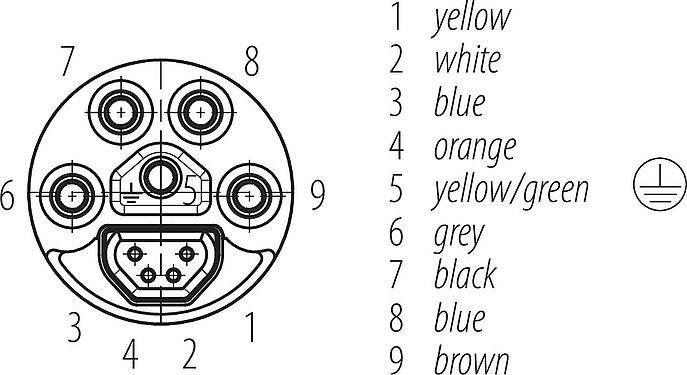

General features
Moreless| Part no. | 99 6328 000 09 |
| Connector design | Female cable connector |
| Version | Connector socket straight |
| Connector locking system | Bayonet |
| Termination | screw clamp |
| Degree of protection | IP67 |
| Connection cross-section | 1.5 - 4 mm² with ferrule Power / 0.34 mm² with ferrule Data / AWG 16–12 with ferrule Power / AWG 22 with ferrule Data |
| Cable outlet | 8,0-17,0 mm |
| Temperature range from/to | -30 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 0.00 |
| Customs tariff number | 85369010 |

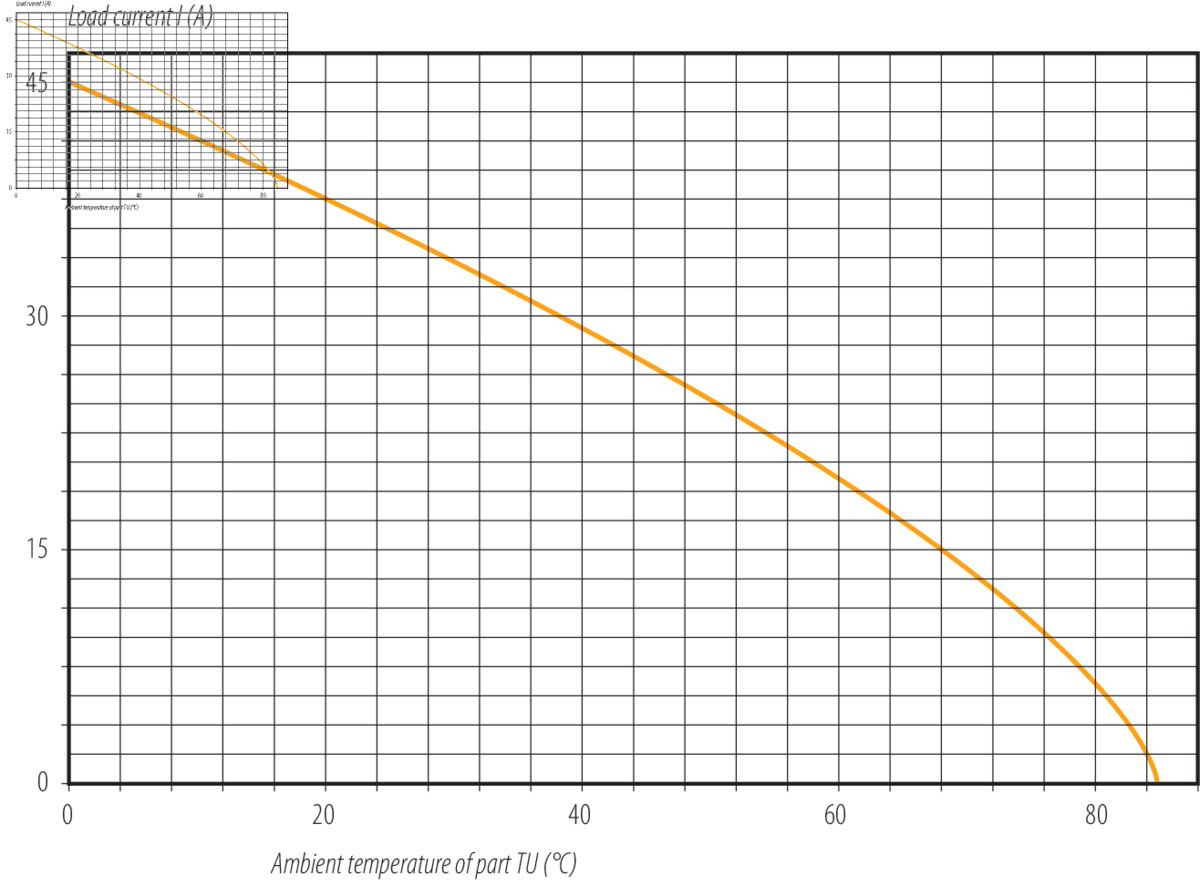

Electrical parameters
Moreless| Rated voltage | Power: 630 V, Data: 50 V |
| Rated impulse voltage | Power: 8000 V, Data: 1000 V |
| Rated current | 28 A Power / 4 A Data |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
Material
Moreless| Housing material | Zinc die-cast nickel-plated |
| Contact body material | PA |
| Contact material | CuZn (brass lead-free) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
NK (Nicht klassifiziert) |
| SCIP number | SCIP-number not available |
Declarations of conformity
Moreless| Low Voltage Directive | EN 60529:1991 | EN 60204-1:2018 |
