Part no.: 99 4606 71 12

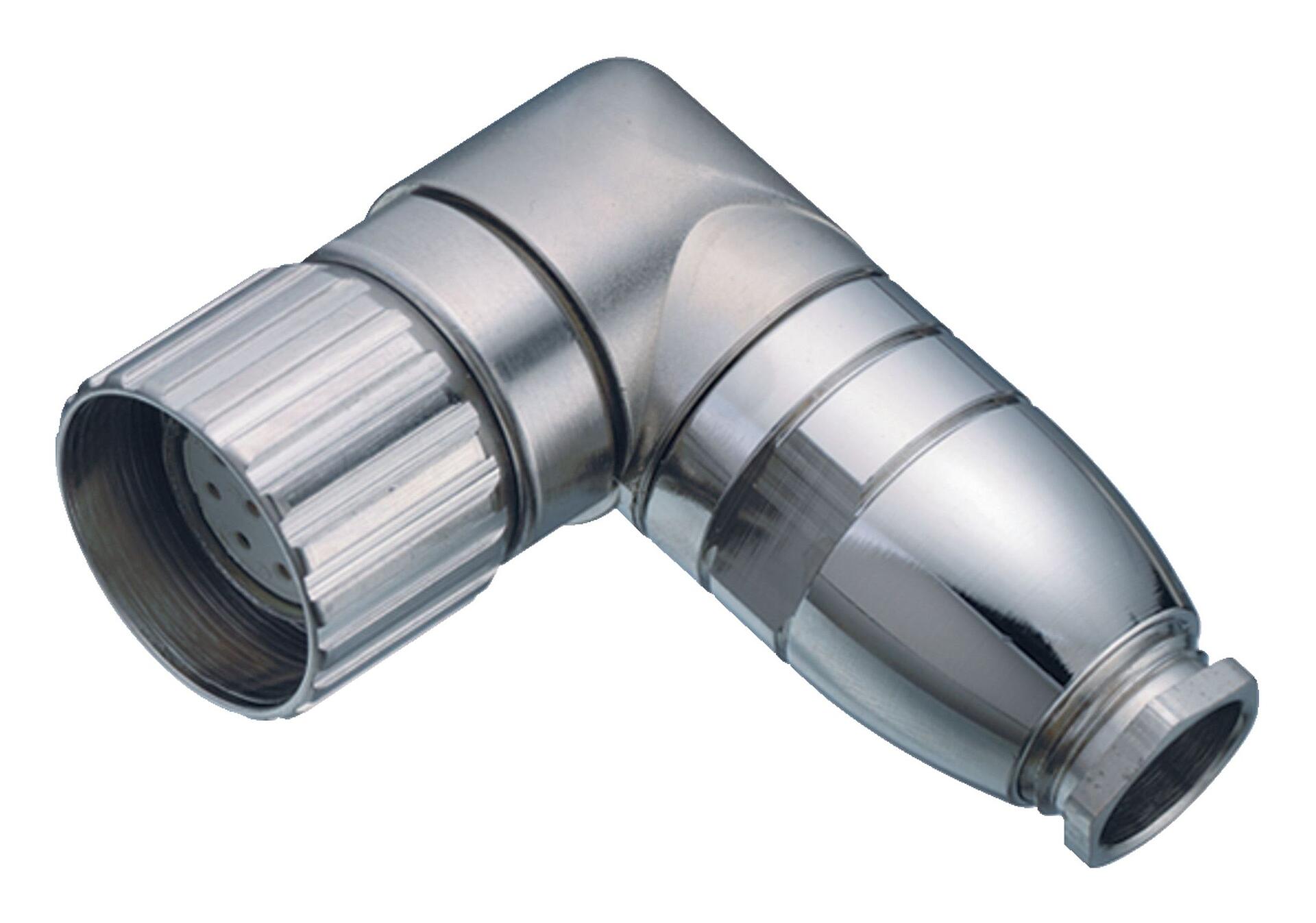

M23 Female angled connector, Contacts: 12, 6.0-10.0 mm, unshielded, solder, IP67
M23, series 623, Power Connectors
This female angled connector with screw locking and a pin count of 12 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/125 °C is this unshielded M23 female angled panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 48 V and the rated current of 8,0 A it is perfectly tuned for its field of application.
General features
MorelessPart no. | 99 4606 71 12 |
Connector design | Female angled connector |
Version | Connector socket angled |
Connector locking system | screw |
Termination | solder |
Degree of protection | IP67 |
Arrangement of contacts | counterclockwise |
Cross-sectional area | max. 1.00 mm² / AWG 17 |
Cable outlet | 6.0-10.0 mm |
Twistability | 45° (8 coding options) |
Temperature range from/to | -25 °C / 125 °C |
Mechanical operation | > 50 Mating cycles |
Weight (g) | 145.50 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 48 V |
Rated impulse voltage | 1500 V |
Rated current | 8.0 A |
Insulation resistance | ≥ 1010 Ω |
Pollution degree | 3 |
Overvoltage category | II |
Insulating material group | III |
EMC compliance | unshielded |
Material
MorelessContact body material | PBT/PA66 |
Contact material | CuSn (bronze) |
Contact plating | Au (gold) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | 3fa988ec-1b02-4ac2-9157-3fc5db1fef50 |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-02 |
ETIM 9.0 | EC002635 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
