  4. M25 Female cable connector, Contacts: 7, 5.0-8.0 mm, shieldable, solder, IP40
Part no.: 09 0042 00 07

M25 Female cable connector, Contacts: 7, 5.0-8.0 mm, shieldable, solder, IP40

M25, series 691, Power Connectors

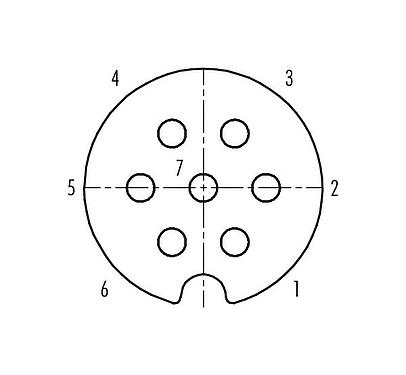

Available numbers of contacts
Compare product
Downloads
This female cable connector with screw locking and a pin count of 7 is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -40 °C/85 °C is this shieldable M25 female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 5,0 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 09 0042 00 07
Connector design Female cable connector
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP40
Cross-sectional area 0.75 mm² / AWG 18
Cable outlet 5.0-8.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 38.75
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance shieldable
Shield connection Cable clamp and soldering lug
Housing material GD-AL eloxiert
Contact body material PET (UL94 V-0)
Contact material CuZn (brass)
Contact plating Ag (silver)
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
