Part no.: 09 0044 00 07

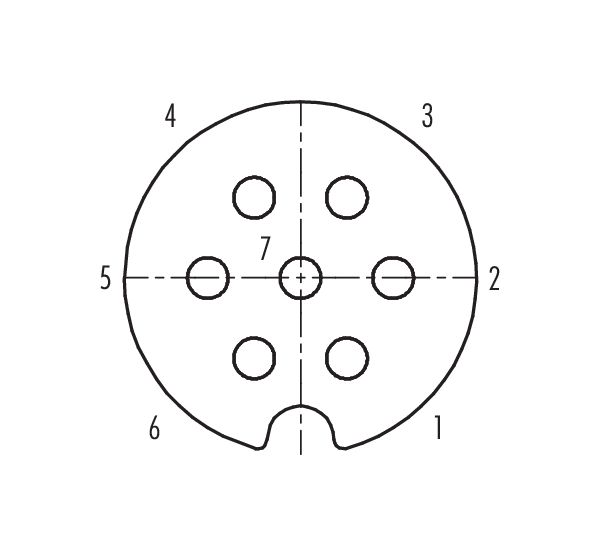

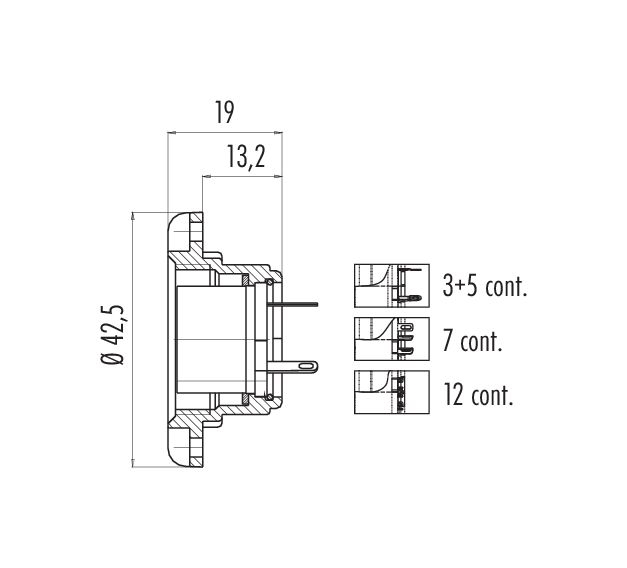

M25 Female panel mount connector, Contacts: 7, shieldable, solder, IP40
M25, series 691, Power Connectors
|Part no.||09 0044 00 07|
|Connector design||Female panel mount connector|
|Version||Connector socket straight|
|Connector locking system||screw|
|Degree of protection||IP40|
|Cross-sectional area||0.75 mm² / AWG 18|
|Temperature range from/to||-40 °C / 85 °C|
|Mechanical operation||> 500 Mating cycles|
|Customs tariff number||85369010|
|Country of Origin||DE|
|Rated voltage||250 V|
|Rated impulse voltage||2500 V|
|Rated current||5.0 A|
|Insulation resistance||≥ 10¹⁰ Ω|
|Insulating material group||III|
|Shield connection||Shield on the housing|
|Housing material||GD-AL eloxiert|
|Contact body material||PET (UL94 V-0)|
|Contact material||CuSn (bronze)|
|Contact plating||Ag (silver)|
None (No pollutants)|
|SCIP number||SCIP-number not available|
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
