  4. Bayonet Female panel mount connector, Contacts: 6 (3+PE+2), not shielded, single wires, IP66/IP67, UL, M20x1.5
Part no.: 09 6112 150 06

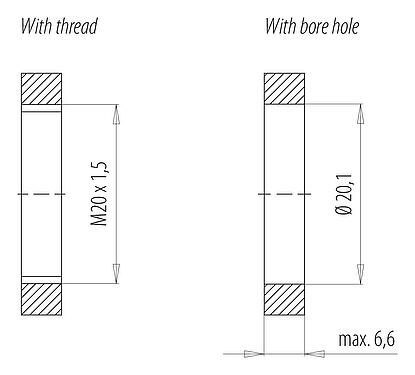

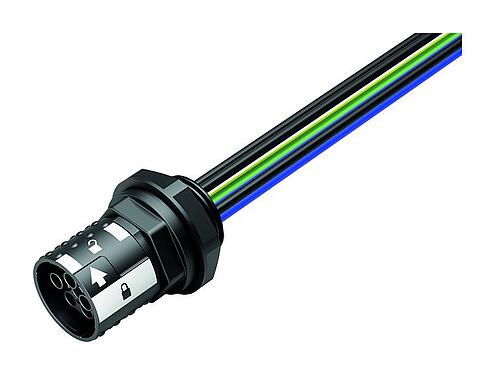

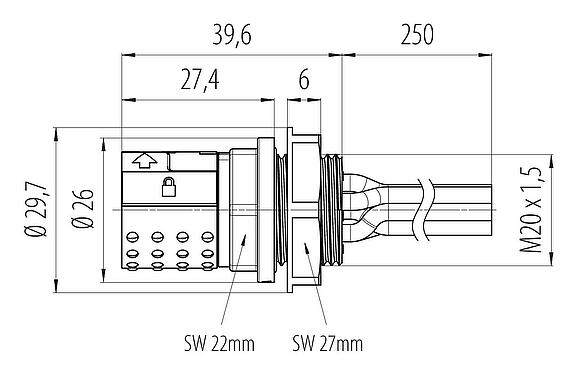

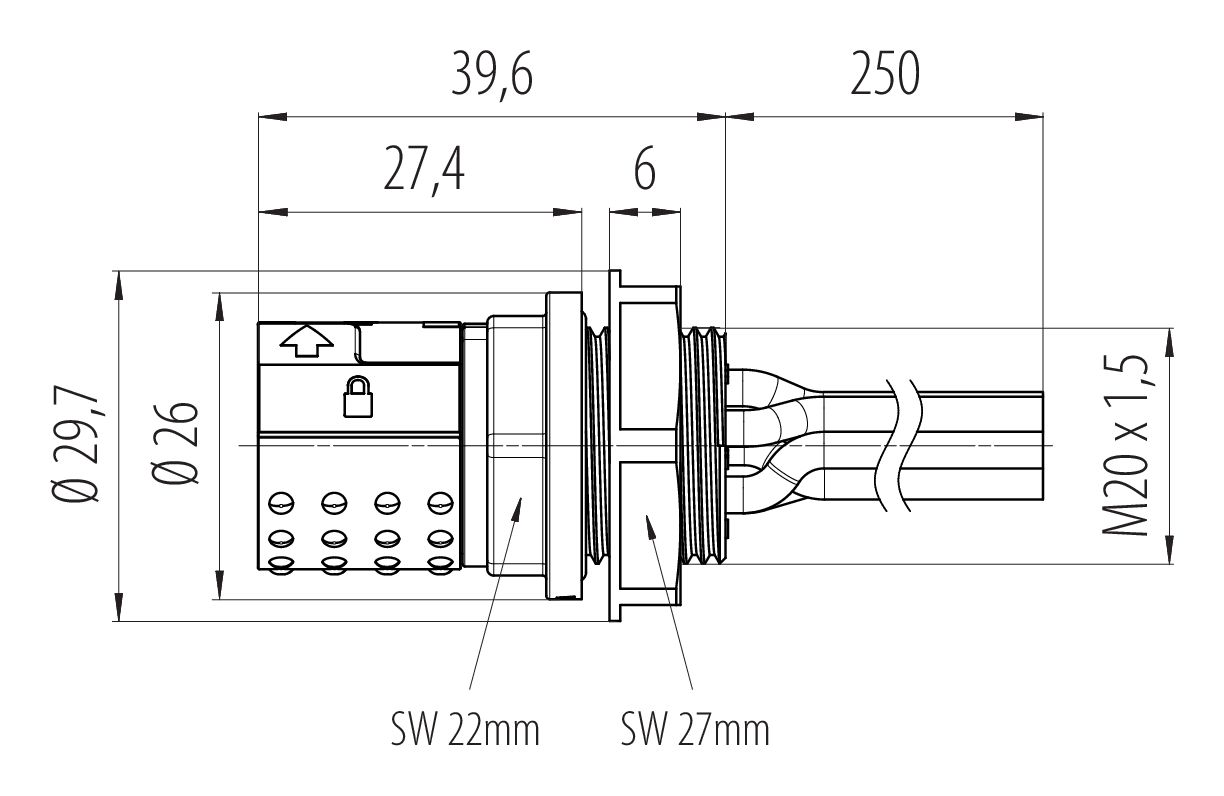

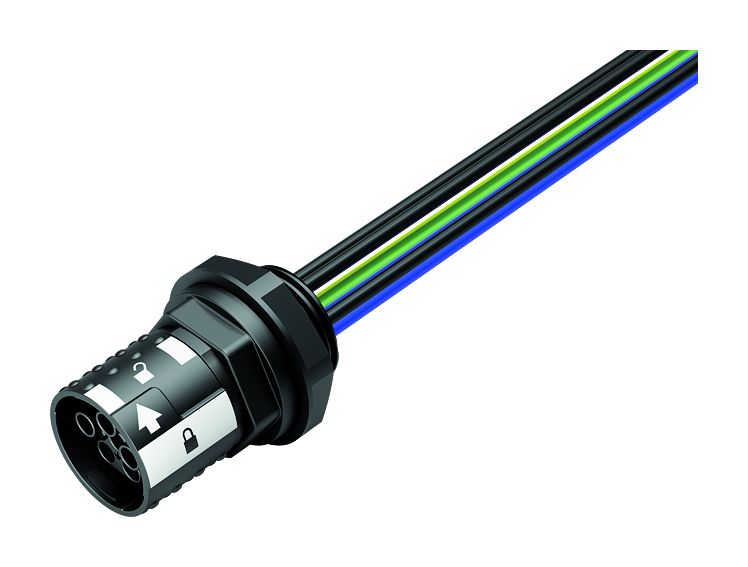

Bayonet Female panel mount connector, Contacts: 6 (3+PE+2), not shielded, single wires, IP66/IP67, UL, M20x1.5

PBC15, series 615, Power Connectors
Compare product
Downloads
General features
Moreless
Part no. 09 6112 150 06
Connector design Female panel mount connector
Wire length 0.15 m
Version Panel mount Connectors
Connector locking system Bayonet
Termination single wires
Degree of protection IP66/IP67
Cross-sectional area 1.50 mm² / AWG 16
Temperature range from/to -25 °C / 90 °C
Mechanical operation > 500 Mating cycles
Weight (g) 0.00
Customs tariff number 85369010
Country of Origin DE
Rated voltage Power: 600 V, Signal: 63 V
Rated impulse voltage Power: 6000 V, Signal: 1500 V
Rated current Power: 16 A, Signal: 10A
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance not shielded
Housing material PA (UL94 HB)
Contact body material PA
Contact material Copper alloy
Contact plating Ag (silver)
Material seal NBR
SCIP number SCIP-number not available
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
