  4. RD24 Female panel mount connector, Contacts: 6+PE, unshielded, screw clamp, IP67, UL, ESTI+, VDE
Part no.: 09 4220 00 07

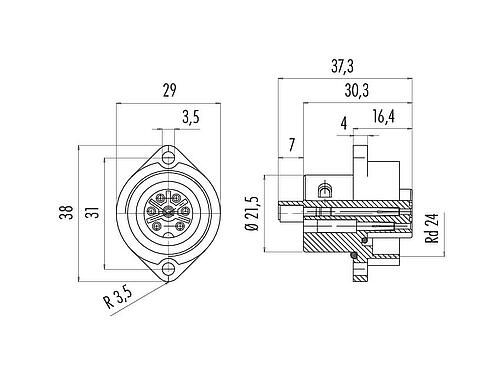

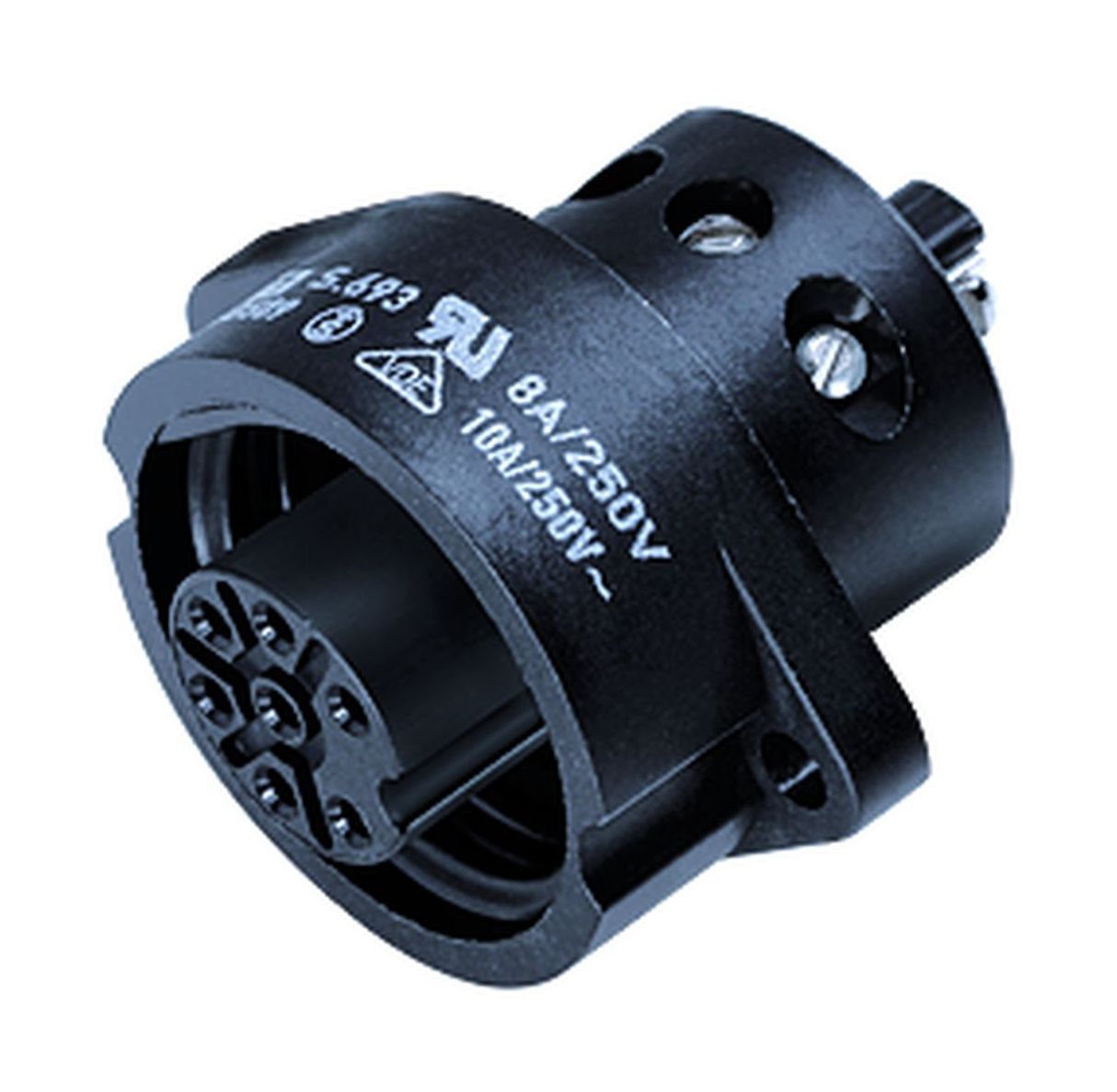

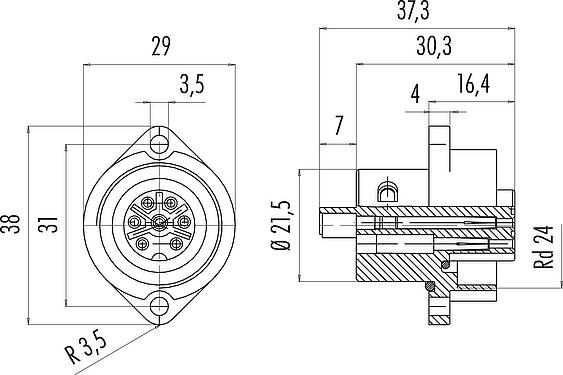

RD24 Female panel mount connector, Contacts: 6+PE, unshielded, screw clamp, IP67, UL, ESTI+, VDE

RD24, series 693, Power Connectors
Compare product
Downloads
General features
Moreless
Part no. 09 4220 00 07
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system screw
Termination screw clamp
Degree of protection IP67
Cross-sectional area max. 1.50 mm² / AWG 16
Temperature range from/to -40 °C / 100 °C
Mechanical operation > 500 Mating cycles
Weight (g) 25.34
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 4000 V
Rated current 10 A (8 A UL)
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category III
Insulating material group III
EMC compliance unshielded
Contact body material PBT
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 2dca2f85-21d2-4a9c-aa61-23fbfe4c9503
Approvals UL, ESTI+, VDE
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
