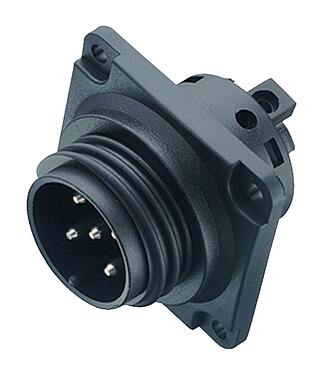

Part no.: 99 0739 00 24
RD30 Male panel mount connector, Contacts: 24, unshielded, solder, IP65
RD30, series 694, Power Connectors

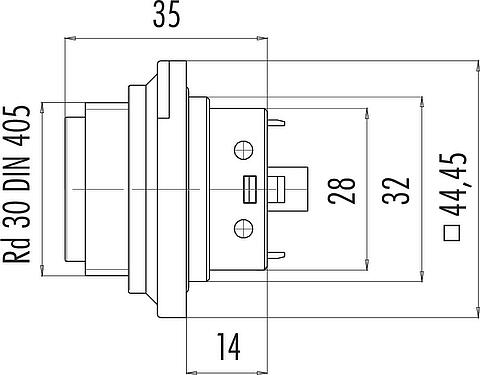

3D View(Click to activate)
This male panel mount connector with screw locking and a pin count of 24 is according to its protection class IP65 Dustproof and complete protection against contact. Protected against dust in harmful quantity. Protection against water jets (nozzle) from any angle.. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/100 °C is this unshielded RD30 male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 3,0 A it is perfectly tuned for its field of application.
General features
Moreless| Part no. | 99 0739 00 24 |
| Connector design | Male panel mount connector |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP65 |
| Cross-sectional area | max. 0.25 mm² / AWG 24 |
| Temperature range from/to | -40 °C / 100 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 27.98 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 125 V |
| Rated impulse voltage | 2500 V |
| Rated current | 3,0 A |
| Insulation resistance | ≥ 10¹⁰ Ω |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | III |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PA |
| Contact body material | PA (UL94 HB) |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 90270811-ab25-46c8-b1d1-155123242e9a |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-02 |
| ETIM 9.0 | EC002635 |
