  4. Contacts: 6 wires, shielded, Standard, PUR, black (RAL 9005), 6 x 0.25 mm², 100 m
Part no.: 08 3094 000 000

Contacts: 6 wires, shielded, Standard, PUR, black (RAL 9005), 6 x 0.25 mm², 100 m

PUR cable, series 769, Cable
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 08 3094 000 000
Alternative part no.: 52 0623 000
Cable length 100 m (Other lengths are available on request).
Version Cable
Weight (g) 4662.00
Customs tariff number 85444995
Country of Origin DE
EMC compliance shielded
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-01-90
ETIM 9.0 EC002638
Cable data
Moreless

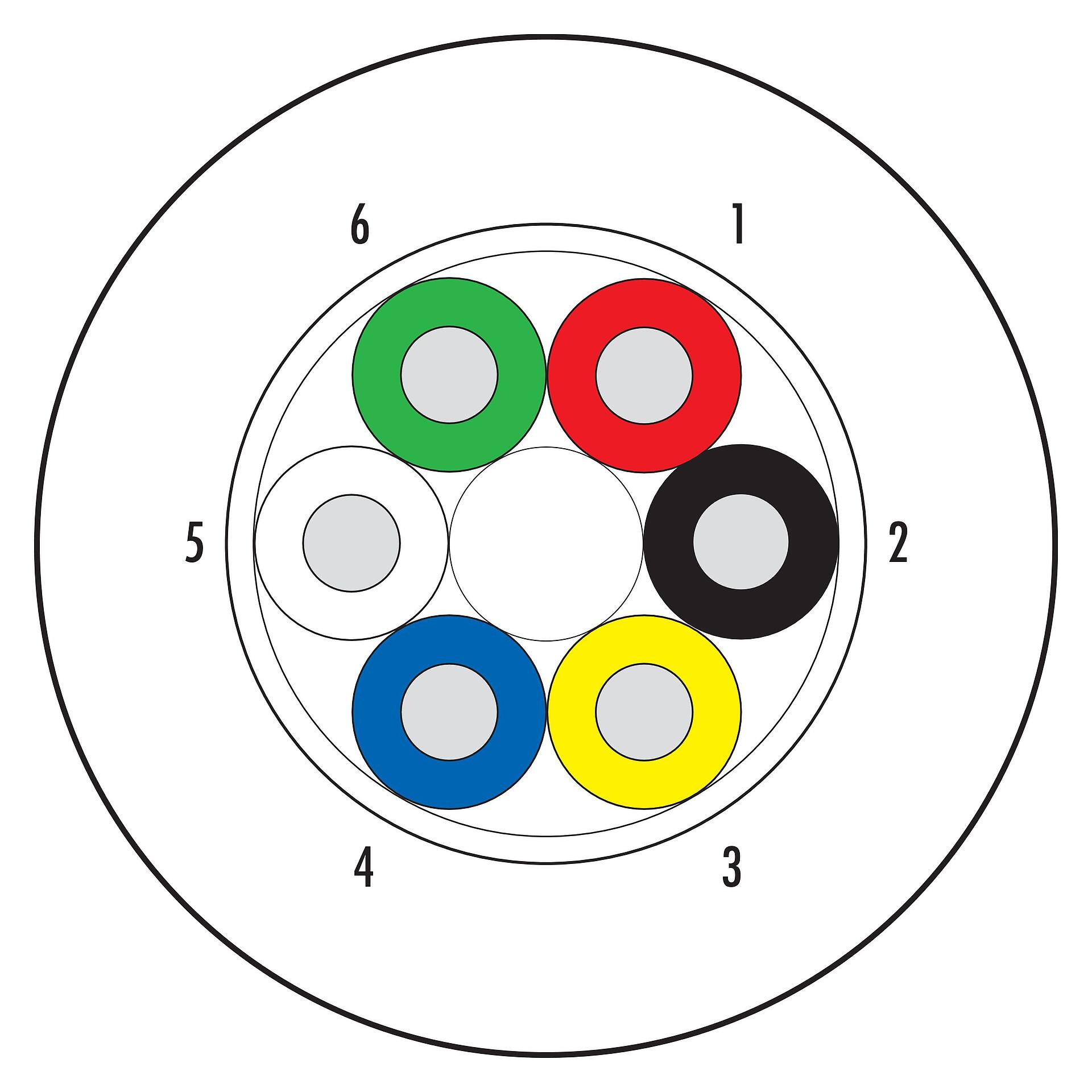

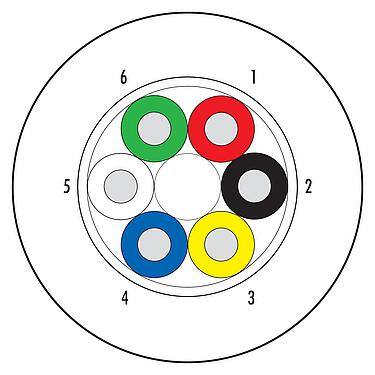

Structure of the cable
Cable type Standard
Cable diameter 5.3 mm
Cross section 6 x 0.25 mm²
Sheath material PUR
Single-lead insulation PVC
Single-lead structure 14 x 0.15 mm
Cable color black (RAL 9005)
Electrical properties
Operating voltage 250 V effective
Cable test voltage 2000 V effective
Conductor resistance 75 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable ≥ 7.5 x Ø
Bending radius, moving cable ≥ 15 x Ø
Thermal properties
Temperature range cable in move from/to -5 °C / 70 °C
Temperature range cable fixed from/to -25 °C / 70 °C
Other features
Halogen free no
Shielded cable
08 3094 000 000
