Part no.: 08 3095 000 000
Contacts: 8 wires, shielded, Standard, PUR, black (RAL 9005), 8 x 0.14 mm², 100 m
PUR cable, series 769
General features
Moreless| Part no. |
08 3095 000 000
Alternative part no.: 52 0269 000
|
| Cable length | 100 m (Other lengths are available on request). |
| Version | Cable |
| Weight (g) | 4255.00 |
| Customs tariff number | 85444995 |
| Country of Origin | DE |
Electrical parameters
Moreless| EMC compliance | shielded |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-90 |
| ETIM 9.0 | EC002638 |

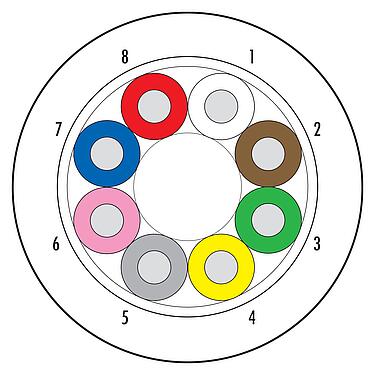

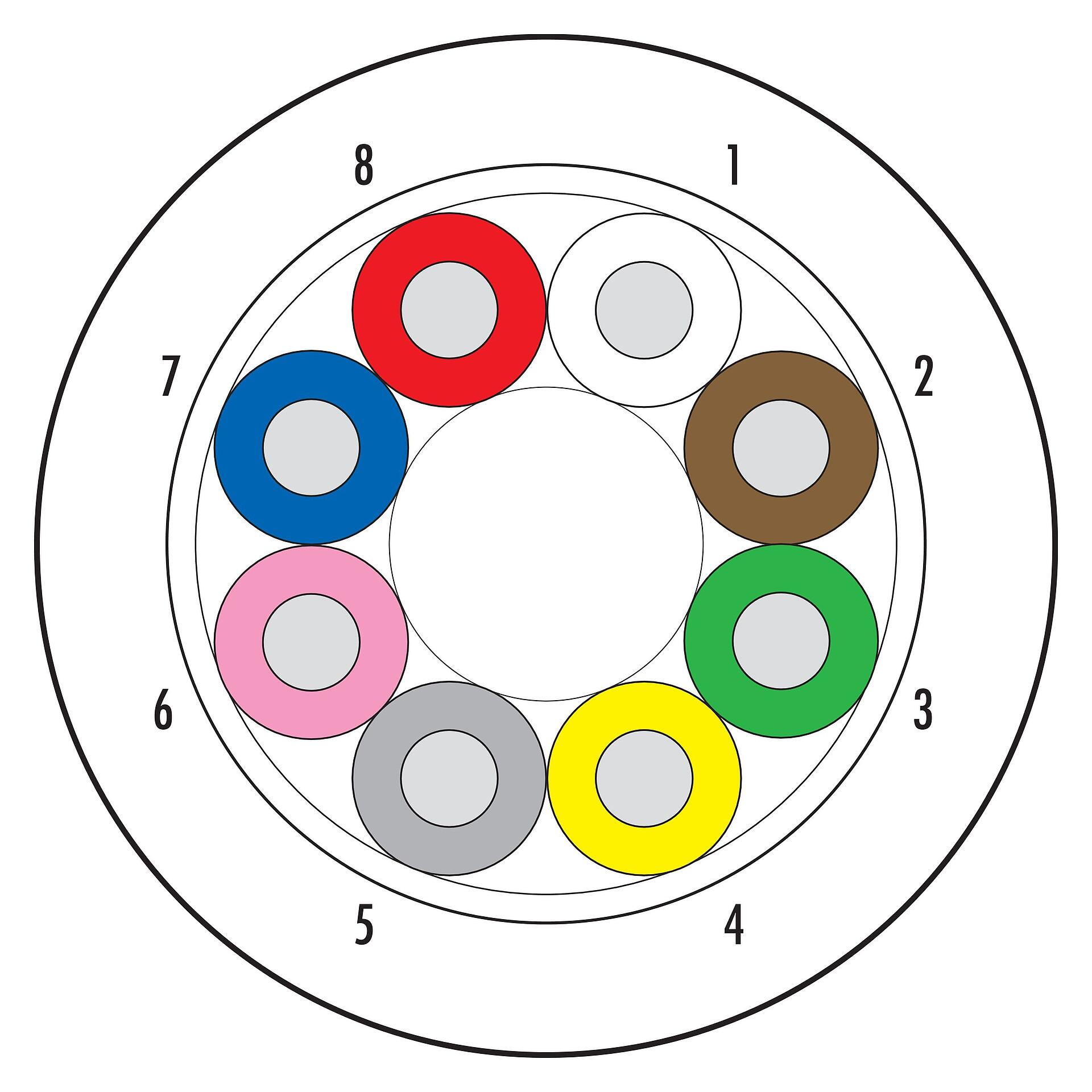

Cable data
Moreless| Structure of the cable | |
| Cable type | Standard |
| Cable diameter | 5.4 mm |
| Cross section | 8 x 0.14 mm² |
| Sheath material | PUR |
| Single-lead insulation | PVC |
| Single-lead structure | 18 x 0.10 mm |
| Cable color | black (RAL 9005) |
| Electrical properties | |
| Cable Insulation resistance | > 10¹¹ Ω x cm (20 °C) |
| Operating voltage | max. 100 V (syringe voltage) |
| Cable test voltage | ≥ 0.5 kV effective |
| Conductor resistance | 148 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | min. 7.5 x Ø |
| Bending radius, moving cable | min. 15 x Ø |
| Bending cycles | > 1 million |
| Permitted acceleration | max. 3 m/s² |
| Travel distance, horizontal | max. 5 m |
| Travel distance, vertical | max. 2 m |
| Travel speed | max. 100 m/min |
| Thermal properties | |
| Temperature range cable in move from/to | -5 °C / 80 °C |
| Temperature range cable fixed from/to | -25 °C / 80 °C |
| Other features | |
| Halogen free | no |
