Part no.: 08 3368 000 001

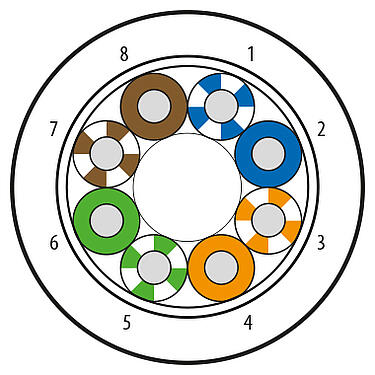

Contacts: 8 wires, shielded, Ethernet, TPE, black, 4 x 2 x AWG 24, variable length
TPE cable, Cable
General features
Moreless| Part no. |
08 3368 000 001
Alternative part no.: 52 0210 000
|
| Cable length | variable length |
| Version | Cable |
| Cross-sectional area | AWG 24 |
| Weight (g) | 0.00 |
Electrical parameters
Moreless| Rated voltage | 600 V |
| Transmission rate | CAT 5e |
| EMC compliance | shielded |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Classifications
Moreless| ETIM 9.0 | EC002638 |
Cable data
Moreless| Structure of the cable | |
| Cable type | Ethernet |
| Cable diameter | 7.6 mm |
| Cross section | 4 x 2 x AWG 24 |
| Sheath material | TPE |
| Single-lead insulation | HDPE |
| Single-lead structure | 7 x 0.32 mm |
| Cable color | black |
| Mechanical properties | |
| Bending cycles | 35 million |
| Thermal properties | |
| Temperature range cable in move from/to | -40 °C / 80 °C |
| Temperature range cable fixed from/to | -40 °C / 80 °C |
