Part no.: 08 3385 000 001
Raw cable, Contacts: 6 wires, unshielded, PUR, black, 6 x AWG 24, variable length
PUR cable, Cable
General features
Moreless| Part no. | 08 3385 000 001 |
| Connector design | Raw cable |
| Cable length | variable length |
| Version | Cable |
| Weight (g) | 0.00 |
| Customs tariff number | 85444995 |
Electrical parameters
Moreless| EMC compliance | unshielded |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Cable data

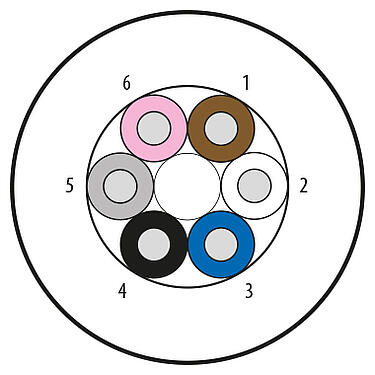

Moreless| Structure of the cable | |
| Cable diameter | 5.0 mm |
| Cross section | 6 x AWG 24 |
| Sheath material | PUR |
| Single-lead insulation | PP9Y halogen-free |
| Single-lead structure | 32 x 0.10 mm |
| Cable color | black |
| Electrical properties | |
| Cable Insulation resistance | > 1000 MΩxKm |
| Operating voltage | 300 V |
| Cable test voltage | ≥ 2500 V effective |
| Conductor resistance | 79 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 10 x Ø |
| Bending cycles | > 2 million |
| Permitted acceleration | max. 5 m/s² + 1 m/s² |
| Travel distance, horizontal | 5 m |
| Travel distance, vertical | 2 m |
| Travel speed | at 5 m horizontal path -> 200 m/min |
| Thermal properties | |
| Temperature range cable in move from/to | -25 °C / 80 °C |
| Temperature range cable fixed from/to | -50 °C / 80 °C |
Classifications
Moreless| ETIM 9.0 | EC002638 |
