  4. Contacts: 3 wires, unshielded, PUR, yellow, 3 x AWG 22, variable length
Part no.: 08 3390 000 001

Contacts: 3 wires, unshielded, PUR, yellow, 3 x AWG 22, variable length

PUR cable
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 08 3390 000 001
Alternative part no.: 52 0591 000
Cable length variable length
Version Cable
Weight (g) 0.00
EMC compliance unshielded
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
ETIM 9.0 EC002638
Cable data
Moreless

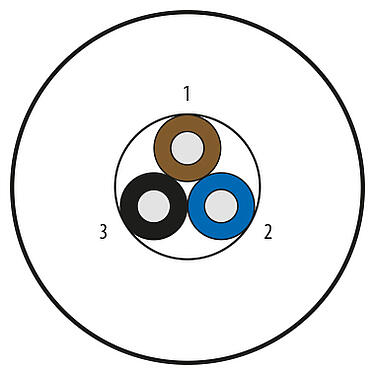

Structure of the cable
Cable diameter 4.3 mm
Cross section 3 x AWG 22
Sheath material PUR
Cable color yellow
Electrical properties
Operating voltage 300 V
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Travel distance, horizontal at 5 m/s² -> 5 m
Travel distance, vertical at 5 m/s² -> 2 m
Thermal properties
Temperature range cable in move from/to -25 °C / 60 °C
Temperature range cable fixed from/to -50 °C / 90 °C
Unshielded cable
08 3390 000 001
