Part no.: 08 3391 000 001

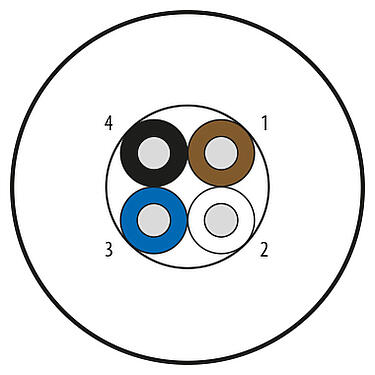

Cable, Contacts: 4 wires, unshielded, PUR, yellow, 4 x AWG 22, variable length
PUR cable, Cable
General features
Moreless| Part no. | 08 3391 000 001 |
| Connector design | Cable |
| Cable length | variable length |
| Version | Cable |
| Weight (g) | 0.00 |
| Customs tariff number | 85444995 |
| Country of Origin | DE |
Electrical parameters
Moreless| EMC compliance | unshielded |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 4.7 mm |
| Cross section | 4 x AWG 22 |
| Sheath material | PUR |
| Single-lead insulation | PP9Y halogen-free |
| Single-lead structure | 42 x 0.10 mm |
| Cable color | yellow |
| Electrical properties | |
| Operating voltage | 300 V |
| Cable test voltage | 3 kV (Sparks test average UL758/1581) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 10 x Ø |
| Bending cycles | > 5 million |
| Permitted acceleration | max. 5 m/s² + 1 m/s² |
| Travel distance, horizontal | at 5 m/s² -> 5 m |
| Travel distance, vertical | at 5 m/s² -> 2 m |
| Travel speed | at 5 m horizontal path -> 200 m/min |
| Thermal properties | |
| Temperature range cable in move from/to | -25 °C / 90 °C |
| Temperature range cable fixed from/to | -50 °C / 90 °C |
| Other features | |
| Halogen free | yes |
Classifications
Moreless| ETIM 9.0 | EC002638 |
