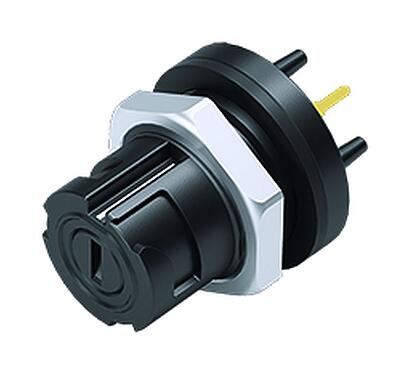

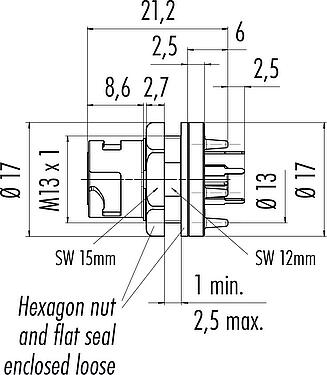

  4. Bayonet Female panel mount connector, Contacts: 5, unshielded, THT, IP54 unplugged, front fastened
Part no.: 09 0762 190 05

Bayonet Female panel mount connector, Contacts: 5, unshielded, THT, IP54 unplugged, front fastened

Bayonet NCC, series 670, Subminiature Connectors
Compare product
This female panel mount connector with bayonet locking system and a pin count of 5 is according to its protection class IP54 ungesteckt Geschützt gegen Staub in schädigenThis Menge. Vollständiger Schutz gegen Berührung. Schutz gegen allseitiges Spritzwasser. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/85 °C is this unshielded bayonet NCC female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 50 V and the rated current of 2,0 A it is perfectly tuned for its field of application.
General features
Part no. 09 0762 190 05
Connector design Female panel mount connector
Version Connector pin straight
Connector locking system Bayonet
Termination THT
Degree of protection IP54 unplugged
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 1000 Mating cycles
Weight (g) 4.00
Customs tariff number 85369010
Country of Origin DE
Rated voltage 50 V
Rated impulse voltage 500 V
Rated current 2.0 A
Pollution degree 2
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number e737ad6e-616d-4d0d-8c19-2f6581f7c961
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
