  4. M9 Male panel mount connector, Contacts: 7, unshielded, THT, IP40
Part no.: 09 0477 22 07

M9 Male panel mount connector, Contacts: 7, unshielded, THT, IP40

M9 IP40, series 711, Subminiature Connectors
Available numbers of contacts
Compare product
Downloads
This male panel mount connector with screw locking and a pin count of 7 is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -40 °C/85 °C is this unshielded M9 IP40 male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 1,0 A it is perfectly tuned for its field of application.

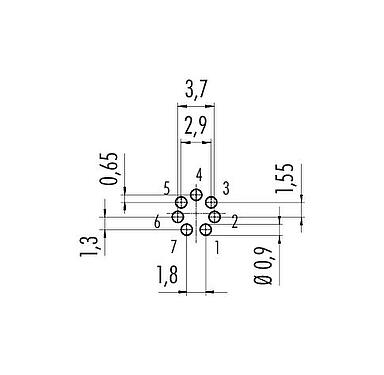

General features
Moreless
Part no. 09 0477 22 07
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination THT
Degree of protection IP40
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 3.17
Customs tariff number 85369010
Country of Origin DE
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current 1.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Contact body material PA (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 2c8e8b96-016c-40b0-b2eb-788a85a122b2
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
