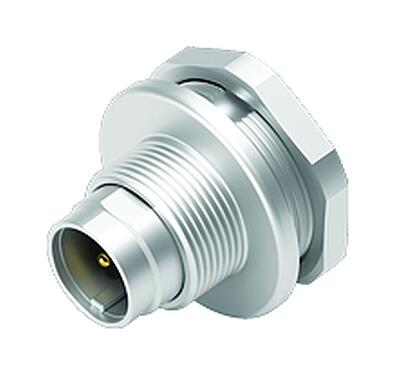

  4. M9 Male panel mount connector, Contacts: 2, unshielded, solder, IP67
Part no.: 09 0403 00 02

M9 Male panel mount connector, Contacts: 2, unshielded, solder, IP67

M9 IP67, series 712, Subminiature Connectors
Available numbers of contacts
Compare product
Downloads
This male panel mount connector with screw locking and a pin count of 2 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -40 °C/85 °C is this unshielded M9 IP67 male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 4,0 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 09 0403 00 02
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 4.92
Customs tariff number 85369010
Country of Origin DE
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Housing material CuZn (Brass nickel plated)
Contact body material PA (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number bd0a399d-f764-4d98-ae5a-c8b4a0dc8545
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
