  2. Subminiature connectors
  3. M9 IP67
  4. M9 Male panel mount connector, Contacts: 3, shieldable, THT, IP67, front fastened
Part no.: 09 0407 35 03

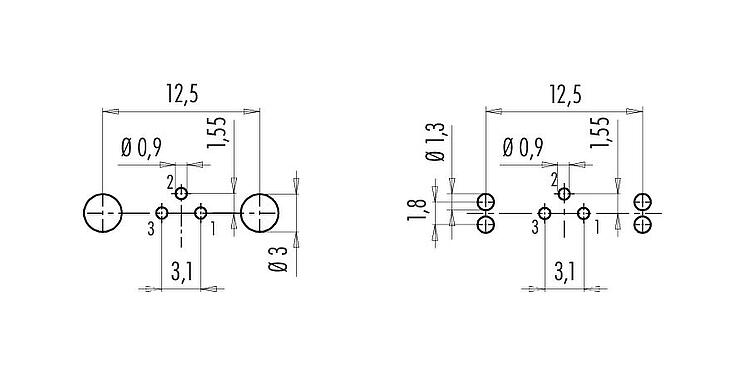

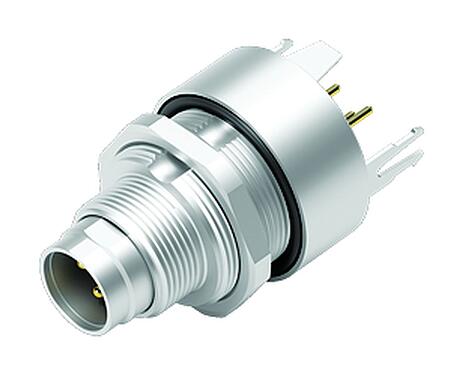

M9 Male panel mount connector, Contacts: 3, shieldable, THT, IP67, front fastened

M9 IP67, series 712, Subminiature Connectors
Available numbers of contacts
Compare product
Downloads
This male panel mount connector with screw locking and a pin count of 3 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -40 °C/85 °C is this shieldable M9 IP67 male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 4,0 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 09 0407 35 03
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination THT
Degree of protection IP67
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 10.42
Customs tariff number 85369010
Country of Origin DE
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance shieldable
Shield connection Shielding plate
Contact body material PA (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 9de7c6a1-7ffa-4a05-9b8a-7d95086ca245
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
