  4. M9 Female angled connector, Contacts: 7, shielded, moulded on the cable, IP67, PUR, black, 8 x 0.14 mm², 2 m
Part no.: 79 1422 72 07

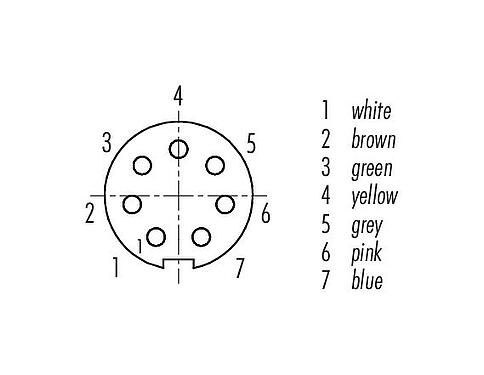

M9 Female angled connector, Contacts: 7, shielded, moulded on the cable, IP67, PUR, black, 8 x 0.14 mm², 2 m

M9 IP67, series 702, Subminiature Connectors
Available numbers of contacts
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
Downloads
This female angled connector with screw locking and a pin count of 7 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -25 °C/70 °C is this shielded M9 IP67 female angled panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 1,0 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 79 1422 72 07
Connector design Female angled connector
Cable length 2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector socket angled
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.14 mm² / AWG 26
Temperature range from/to -25 °C / 70 °C
Mechanical operation > 500 Mating cycles
Weight (g) 93.40
Customs tariff number 85369010
Country of Origin HU
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current 1.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance shielded
Shield connection Shield on the threaded ring
Housing material PUR
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 607d198b-2a0b-4746-a313-d5bb64d6307b
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Moreless
Structure of the cable
Cable diameter 5.4 mm
Cross section 8 x 0.14 mm²
Sheath material PUR
Single-lead insulation PVC
Single-lead structure 18 x 0.10 mm
Cable color black
Electrical properties
Conductor resistance 148 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable min. 7.5 x Ø
Bending radius, moving cable min. 15 x Ø
Bending cycles > 1 million
Permitted acceleration max. 3 m/s²
Travel distance, horizontal max. 5 m
Travel distance, vertical max. 2 m
Thermal properties
Temperature range cable in move from/to -5 °C / 80 °C
Temperature range cable fixed from/to -25 °C / 80 °C
Other features
Halogen free no
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
