1. Products
  2. Subminiature connectors
  3. M9 IP67

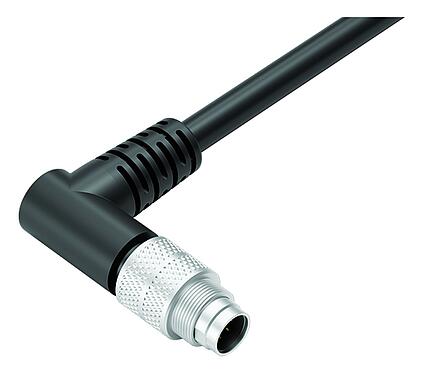

  4. M9 IP67 Male angled connector, Contacts: 8, shielded, moulded on the cable, IP67, PUR, black, 8 x 0.14 mm², 5 m
Part no.: 79 1425 75 08

M9 IP67 Male angled connector, Contacts: 8, shielded, moulded on the cable, IP67, PUR, black, 8 x 0.14 mm², 5 m

M9, series 702, Subminiature Connectors
Available numbers of contacts
Compare product
General features
Part no. 79 1425 75 08
Connector design Male angled connector
Cable length 5 m
Version Connector pin angled
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.14 mm² / AWG 26
Temperature range from/to -25 °C / 70 °C
Mechanical operation > 500 Mating cycles
Weight (g) 219.00
Customs tariff number 85444290
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current (40 °C) 1.0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance shielded
Shield connection Shield on the threaded ring
Housing material PUR
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 5fac843b-4f18-4858-8d4e-0bea3266720d
eCl@ss 11.1 27-06-03-11
ETIM 7.0 EC001855
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Structure of the cable
Cable diameter 5.4 mm
Cross section 8 x 0.14 mm²
Sheath material PUR
Single-lead insulation PVC
Single-lead structure 18 x 0.10 mm
Cable color black
Electrical properties
Conductor resistance 148 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable min. 7.5 x Ø
Bending radius, moving cable min. 15 x Ø
Bending cycles > 1 million
Permitted acceleration max. 3 m/s²
Travel distance, horizontal max. 5 m
Travel distance, vertical max. 2 m
Thermal properties
Temperature range cable in move from/to -5 °C / 80 °C
Temperature range cable fixed from/to -25 °C / 80 °C
Other features
Halogen free no
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
Data sheet
Data sheet 79 1425 75 08
79 1425 75 08
79 1425 75 08
China RoHS
79 1425 75 08
Declaration of conformity, Low Voltage Directive
Declaration of conformity
Low Voltage Directive
UKCA declaration of conformity, Electrical Equipment
UKCA declaration of conformity
Electrical Equipment
Declaration of conformity, RoHS Directive
Declaration of conformity
RoHS Directive
UKCA declaration of conformity, UK-RoHS
UKCA declaration of conformity
CAD files
Select required format
M9 IP67
79 1425 75 08
