Part no.: 09 4932 015 08

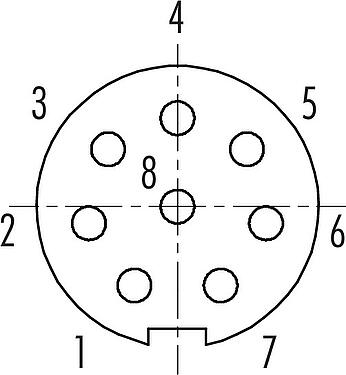

Female panel mount connector, Contacts: 8, unshielded, solder, IP67
Push Pull, series 430
This female panel mount connector mit Push-Pull Verriegelung and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -40 °C/85 °C is this unshielded Push-Pull female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 1,0 A it is perfectly tuned for its field of application.
|Part no.||09 4932 015 08|
|Connector design||Female panel mount connector|
|Version||Connector socket straight|
|Connector locking system||Push-Pull|
|Degree of protection||IP67|
|Cross-sectional area||0.14 mm² / AWG 26|
|Temperature range from/to||-40 °C / 85 °C|
|Mechanical operation||> 500 Mating cycles|
|Customs tariff number||85369010|
|Rated voltage||125 V|
|Rated impulse voltage||1500 V|
|Rated current (40 °C)||1.0 A|
|Insulating material group||II|
|Contact body material||PUR/PA|
|Contact material||CuSn (bronze)|
|Contact plating||Au (gold)|
CAS 7439-92-1 (Lead)|
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
