  4. Snap-In Male cable connector, Contacts: 5, 4.0-5.0 mm, unshielded, solder, IP40
Part no.: 09 9789 71 05

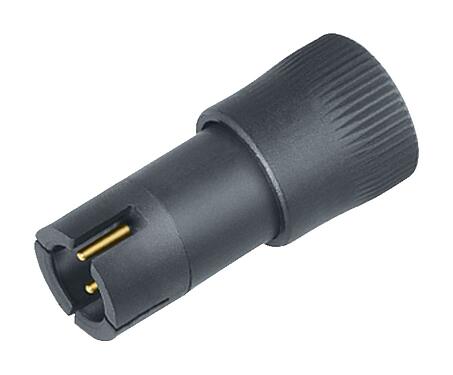

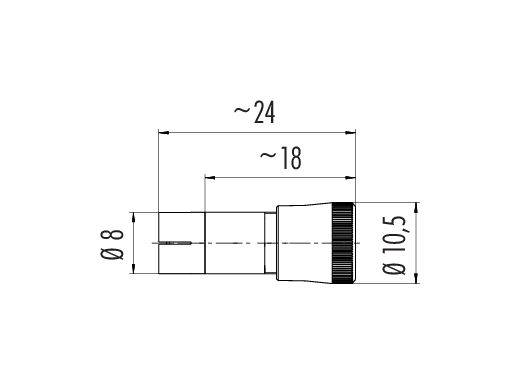

Snap-In Male cable connector, Contacts: 5, 4.0-5.0 mm, unshielded, solder, IP40

Snap-In IP40, series 719, Subminiature Connectors
Available numbers of contacts
Compare product
Downloads
This male cable connector with snap-in locking system and a pin count of 5 is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -25 °C/70 °C is this unshielded Snap-In IP40 male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 3,0 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 09 9789 71 05
Connector design Male cable connector
Version Connector pin straight
Connector locking system snap-in
Termination solder
Degree of protection IP40
Cross-sectional area 0.25 mm² / AWG 24
Cable outlet 4.0-5.0 mm
Temperature range from/to -25 °C / 70 °C
Mechanical operation > 100 Mating cycles
Weight (g) 1.30
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 800 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number aa228501-850e-4823-805d-2d1c9b375fd7
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
