08 2629 000 001 | binder Snap-In Adapter, unshielded, screwable from the front

Menu

Menu

Part no.

My Cart

binder USA

Products
Subminiature connectors
Snap-in IP67
Snap-In Adapter, unshielded, screwable from the front

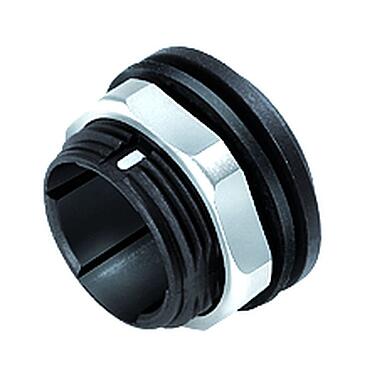

Illustration 08 2629 000 001 - Snap-In Adapter, unshielded, screwable from the front — Illustration

3D View 08 2629 000 001 - Snap-In Adapter, unshielded, screwable from the front — 3D View

Component part drawing 08 2629 000 001 - Snap-In Adapter, unshielded, screwable from the front — Component part drawing

Scale drawing 08 2629 000 001 - Snap-In Adapter, unshielded, screwable from the front — Scale drawing

Assembly instructions 08 2629 000 001 - Snap-In Adapter, unshielded, screwable from the front — Assembly instructions

Assembly instructions / Panel cut-out 08 2629 000 001 - Snap-In Adapter, unshielded, screwable from the front — Assembly instructions / Panel cut-out

Part no.	08 2629 000 001
Connector design	Adapter
Version	Adapter
Additional information	screwable from the front
Weight (g)	4.02
Customs tariff number	85366990
Country of Origin	DE

Pollution degree	2
EMC compliance	unshielded

Contact body material	PA (UL94 V-0)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	afa3e37b-2646-4be0-8d97-706c022b4b3b

eCl@ss 11.1	27-44-02-08
ETIM 9.0	EC002638

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
