Name: M12-X
Brand: binder
SKU: 09 5287 00 08

Illustration M12 Lead-through for control cabinet, female connector - RJ45 straight, Contacts: 8, shielded, pluggable, IP67, UL, Rear mounting — Illustration

3D View M12 Lead-through for control cabinet, female connector - RJ45 straight, Contacts: 8, shielded, pluggable, IP67, UL, Rear mounting — 3D View

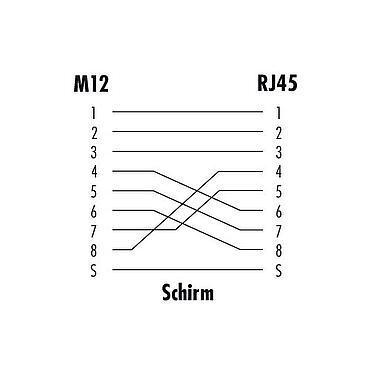

Pin assignment plans M12 Lead-through for control cabinet, female connector - RJ45 straight, Contacts: 8, shielded, pluggable, IP67, UL, Rear mounting — Pin assignment plans

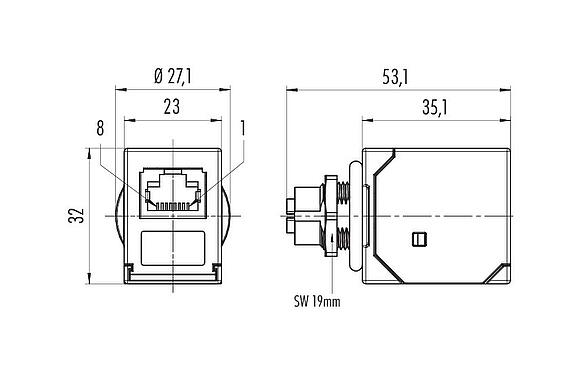

Scale drawing M12 Lead-through for control cabinet, female connector - RJ45 straight, Contacts: 8, shielded, pluggable, IP67, UL, Rear mounting — Scale drawing

Contact arrangement (Plug-in side) M12 Lead-through for control cabinet, female connector - RJ45 straight, Contacts: 8, shielded, pluggable, IP67, UL, Rear mounting — Contact arrangement (Plug-in side)

The lead-through for control cabinet, Dose - RJ45 gerade with screw locking and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shielded M12-X lead-through for control cabinet, Dose - RJ45 gerade designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 50 V (AC ) / 60 V (DC) and the rated current of 0,5 A it is perfectly tuned for its field of application.

Moreless

Part no.	09 5287 00 08
Connector design	Lead-through for control cabinet, female connector - RJ45 straight
Coding	X-coded
Version	Lead-through for control cabinets
Connector locking system	screw
Termination	pluggable
Degree of protection	IP67 IP20
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	32.83
Customs tariff number	85369010
Country of Origin	DE

Moreless

Rated voltage	50 V (AC) / 60 V (DC)
Rated impulse voltage	800 V
Rated current	0.5 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Transmission rate	CAT 6A
Overvoltage category	II
Insulating material group	III
EMC compliance	shielded

Moreless

Housing material	Brass nickel-plated / Zinc die-cast nickel-plated
Contact body material	PA
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	9b303f9a-9985-4354-9779-b41b68e97169

Moreless

Approvals	UL

Moreless

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Moreless

Low Voltage Directive	2011/65/EU (EN 50581:2012)
RoHS Directive	2011/65/EU (EN 50581:2012)
