Part no.: 09 2449 100 04

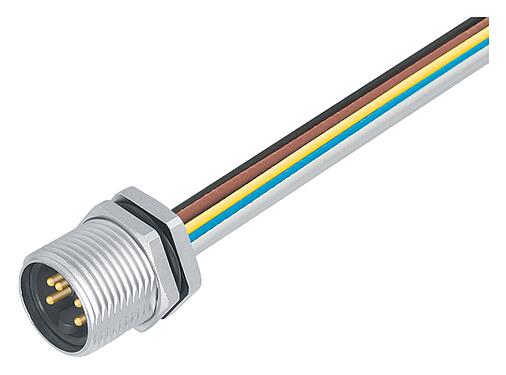

7/8" Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, VDE, front fastened
7/8", series 820, Automation Technology - Voltage and Power Supply
|Part no.||09 2449 100 04|
|Connector design||Male panel mount connector|
|Version||Connector pin straight|
|Connector locking system||screw|
|Degree of protection||IP68|
|Cross-sectional area||0.75 mm² / AWG 18|
|Temperature range from/to||-25 °C / 85 °C|
|Mechanical operation||> 100 Mating cycles|
|Customs tariff number||85369010|
|Country of Origin||DE|
|Rated voltage||300 V (600 V UL)|
|Rated impulse voltage||4000 V|
|Rated current||7.0 A|
|Insulating material group||I|
|Housing material||Brass nickel-plated|
|Contact body material||PUR|
|Contact material||CuZn (brass)|
|Contact plating||Au (gold)|
CAS 7439-92-1 (Lead)|
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
