  2. Automation technology - Voltage and Power Supply
  3. 7/8"
  4. 7/8" Male panel mount connector, Contacts: 2+PE, unshielded, single wires, IP68, UL, VDE, front fastened
Part no.: 09 2447 100 03

7/8" Male panel mount connector, Contacts: 2+PE, unshielded, single wires, IP68, UL, VDE, front fastened

7/8", series 820, Automation Technology - Voltage and Power Supply
Available numbers of contacts
Compare product
Downloads

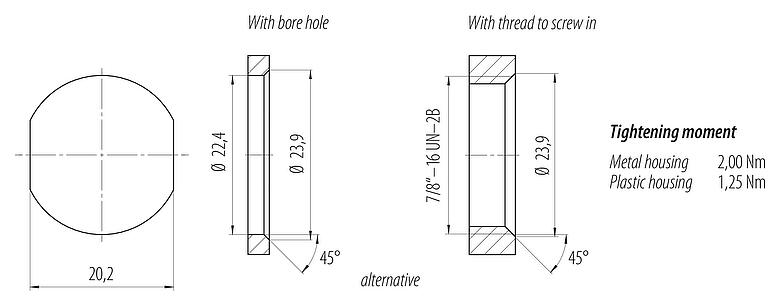

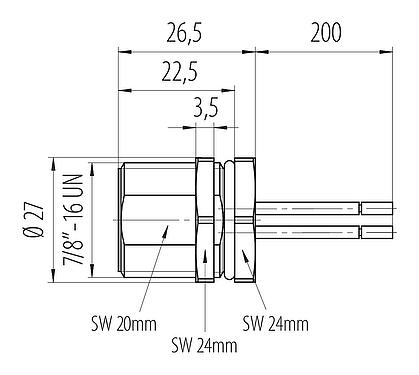

This male panel mount connector with screw locking and a pin count of 2+PE is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this unshielded 7/8" male panel mount connector designed for both severe cold and severe heat and has the UL, VDE approval. Due to the qualified rated voltage of 300 V (600 V UL) and the rated current of 10,0 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 09 2447 100 03
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination single wires
Degree of protection IP68
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 53.00
Customs tariff number 85369010
Country of Origin DE
Rated voltage 300 V (600 V UL)
Rated impulse voltage 4000 V
Rated current 10.0 A
Pollution degree 3
Overvoltage category III
Insulating material group I
EMC compliance unshielded
Housing material Brass nickel-plated
Contact body material PUR
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 32b2b1b2-7267-42aa-bc66-36070b17ad03
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector to the device connector, we recommend tightening the threaded ring to 1.5 Nm. A suitable torque wrench is available as an accessory (order no. 07 0082 000).
