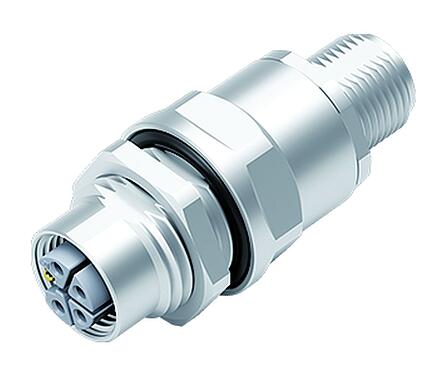

Part no.: 09 5291 10 05
M12 Lead-through for control cabinet, Contacts: 4+FE, shielded, pluggable, IP67, UL, M12x1.0
M12-L, series 823, Automation Technology - Voltage and Power Supply
3D View(Click to activate)
The lead-through for control cabinet with screw locking and a pin count of 4+FE is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shielded M12-L coded lead-through for control cabinet designed for both severe cold and severe heat. UL Due to the qualified rated voltage of 63 V and the rated current of 16,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN IEC 61076-2-111:2018-10 and VDE 0687-76-2-111:2018-10.
General features
Moreless| Part no. | 09 5291 10 05 |
| Connector design | Lead-through for control cabinet |
| Type standard | DIN EN IEC 61076-2-111:2018-10;VDE 0687-76-2-111:2018-10 |
| Connector locking system | screw |
| Termination | pluggable |
| Degree of protection | IP67 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 39.99 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |

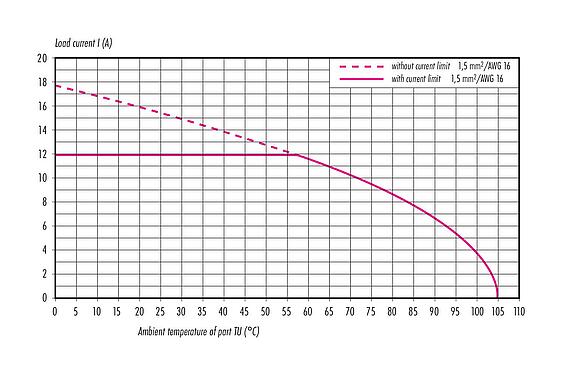

Electrical parameters
Moreless| Rated voltage | 63 V |
| Rated impulse voltage | 1500 V |
| Rated current | 16.0 A |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | shielded |
Material
Moreless| Housing material | CuZn (Brass nickel plated) |
| Contact body material | PA grey |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 88143c21-47e1-453e-9405-70fc78e0b030 |
Authorization/approvals
Moreless| Approvals | UL |
Classifications
Moreless| ETIM 9.0 | EC003569 |
Declarations of conformity
Moreless| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
