Part no.: 09 5247 00 12

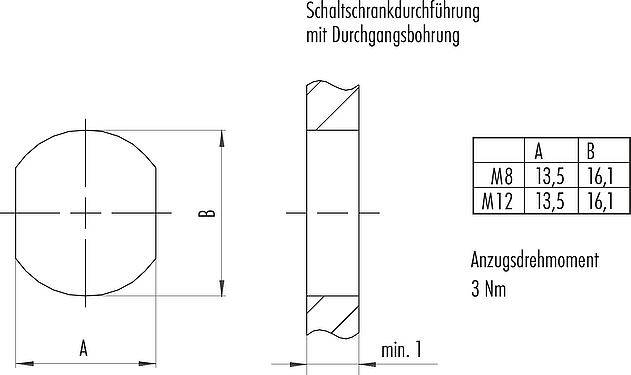

M12 Lead-through for control cabinet, 2.5-4.0 mm, shielded, solder, IP40
Automation Technology - Sensors and Actuators
General features
Moreless| Part no. | 09 5247 00 12 |
| Connector design | Lead-through for control cabinet |
| Type standard | DIN EN 61076-2-101 |
| Version | Lead-through for control cabinets |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP40 |
| Connection cross-section | 0.25 mm² / AWG 24 |
| Cable outlet | 2.5-4.0 mm |
| Temperature range from/to | -25 °C / 70 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 61.15 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 60 V |
| Rated impulse voltage | 800 V |
| Rated current | 1.5 A |
| Pollution degree | 1 |
| Overvoltage category | II |
| Insulating material group | III |
| EMC compliance | shielded |
| Shield connection | Shield on the housing |
Material
Moreless| Contact body material | PA |
| Contact material | CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 7199ac1c-1f07-4e1c-a720-bab9285396a9 |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
Declarations of conformity
Moreless| Low Voltage Directive | 2011/65/EU (EN 50581:2012) |
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
