Part no.: 09 3411 00 03

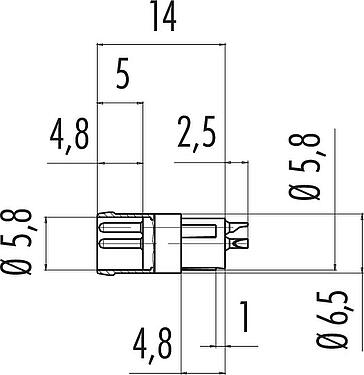

Snap-In Male receptacle, Contacts: 3, unshielded, solder, IP65
M8, series 718, Automation Technology - Sensors and Actuators
This Male receptacle with snap-in locking system and a pin count of 3 is according to its protection class IP65 Dustproof and complete protection against contact. Protected against dust in harmful quantity. Protection against water jets (nozzle) from any angle.. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/70 °C is this unshielded M8 Male receptacle designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
MorelessPart no. | 09 3411 00 03 |
Connector design | Male receptacle |
Type standard | DIN EN 61076-2-104 |
Version | Connector pin straight |
Connector locking system | snap-in |
Termination | solder |
Degree of protection | IP65 |
Cross-sectional area | 0.25 mm² / AWG 24 |
Temperature range from/to | -25 °C / 70 °C |
Mechanical operation | > 100 Mating cycles |
Weight (g) | 0.87 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 60 V |
Rated impulse voltage | 800 V |
Rated current | 4.0 A |
Pollution degree | 3 |
Overvoltage category | II |
Insulating material group | II |
EMC compliance | unshielded |
Material
MorelessHousing material | CuZn (Brass nickel plated) |
Contact body material | PA |
Contact material | CuZn (brass) |
Contact plating | Au (gold) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | 50f374e0-5b24-495a-a292-3168b39ebae9 |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-09 |
ETIM 9.0 | EC003569 |
