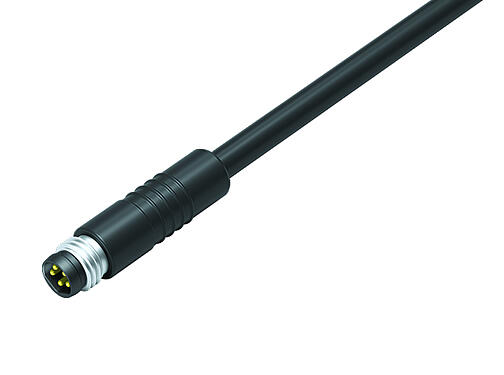

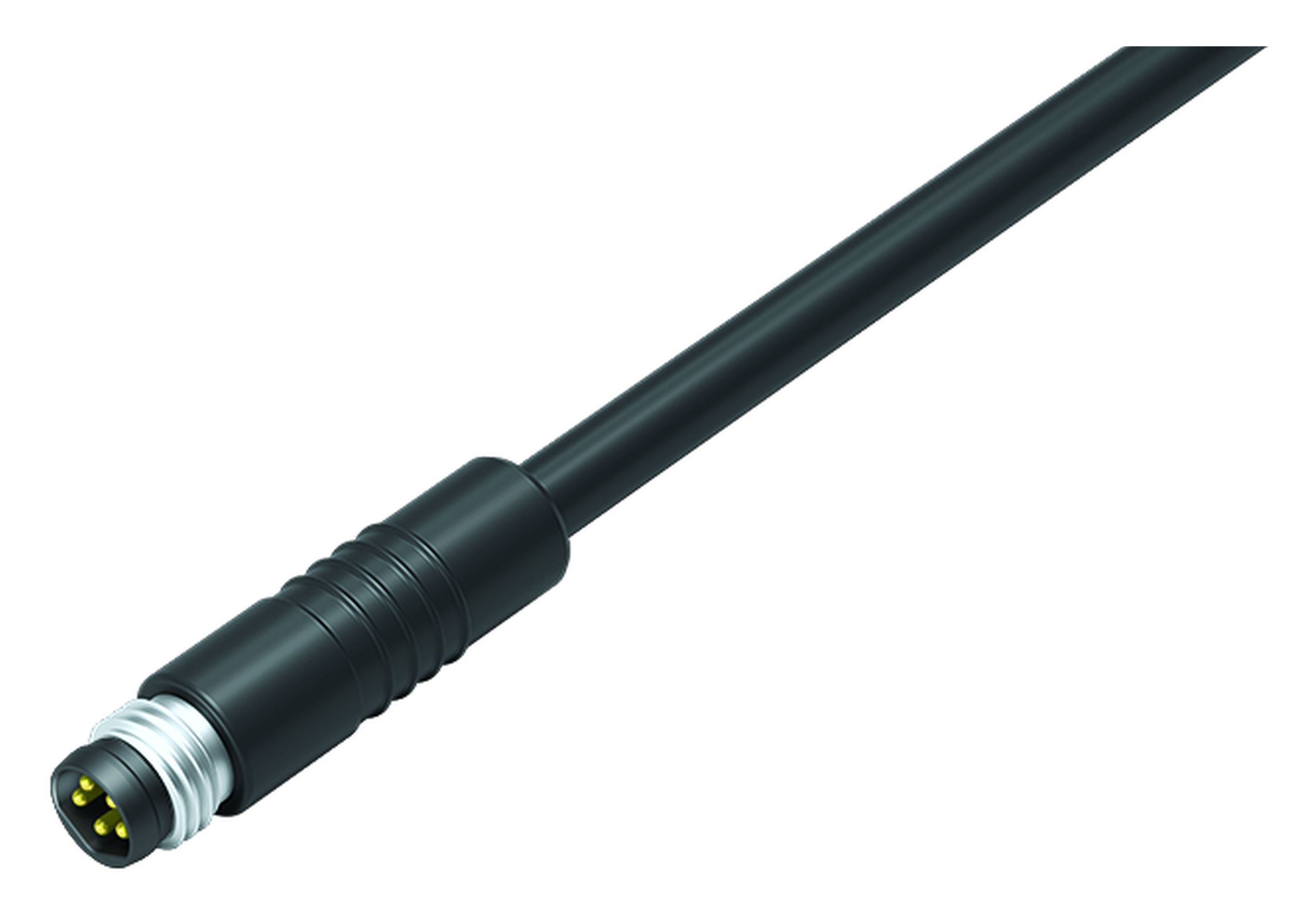

  4. Snap-In Male cable connector, Contacts: 5, unshielded, moulded on the cable, IP65, PUR, black, 5 x 0.34 mm², 2 m
Part no.: 79 3413 52 05

Snap-In Male cable connector, Contacts: 5, unshielded, moulded on the cable, IP65, PUR, black, 5 x 0.34 mm², 2 m

M8, series 718, Automation Technology - Sensors and Actuators
Available numbers of contacts
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
This male cable connector with snap-in locking system and a pin count of 5 is according to its protection class IP65 Dustproof and complete protection against contact. Protected against dust in harmful quantity. Protection against water jets (nozzle) from any angle.. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/70 °C is this unshielded M8 male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 30 V and the rated current of 3,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
Part no. 79 3413 52 05
Connector design Male cable connector
Type standard DIN EN 61076-2-104
Cable length 2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector pin straight
Connector locking system snap-in
Termination moulded on the cable
Degree of protection IP65
Cross-sectional area 0.34 mm² / AWG 22
Temperature range from/to -25 °C / 70 °C
Mechanical operation > 50 Mating cycles
Weight (g) 75.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current 3,0 A
Insulation resistance ≥ 10⁸ Ω
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance unshielded
Contact body material PUR
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number d3a1f964-ae8c-4f79-9665-ff730a4c5040
ETIM 9.0 EC002638
Cable data
Structure of the cable
Cable diameter 5.0 mm
Cross section 5 x 0.34 mm²
Sheath material PUR
Single-lead insulation PP
Single-lead structure 43 x 0.10 mm
Cable color black
Electrical properties
Operating voltage 300 V
Cable test voltage ≥ 2000 V effective
Conductor resistance 60 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable ≥ 10 x Ø
Bending radius, moving cable ≥ 5 x Ø
Bending cycles > 5 million
Permitted acceleration 5 m/s²
Travel distance, horizontal at 5 m/s² -> 5 m
Travel distance, vertical at 5 m/s² -> 5 m
Travel speed at 5 m horizontal path -> 200 m/min
Thermal properties
Temperature range cable in move from/to -25 °C / 90 °C
Temperature range cable fixed from/to -50 °C / 90 °C
Other features
Halogen free yes
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
